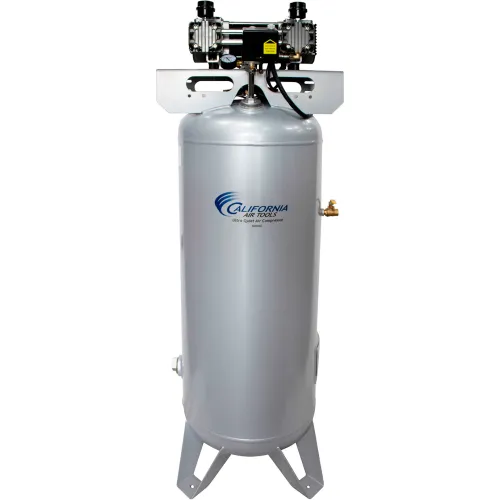

The Powerful 6.5 Hp 3-Phase 230 volt motor-pump operates at 3400 RPM creating up to 20 CFM air flow and is designed to increase duty cycle and allow for longer continuous run operations.
The Oil-Free Quad Piston Pump System is engineered for high performance and durability.
The large 60 Gallon ASME Steel Air Tank is just the right size to support a large facility including commercial business, manufacturing operations, autobody shops and other general pneumatics that require air volumes of up to 20 cfm.
Designed for the person looking for Power, Oil-Free Air Flow and at Least 30% Less Noise!
Features:
- Ultra Quiet - 85 decibels
- Oil-Free Pump – Cleaner air for better tool operation
- Less maintenance and Costs
- One tank pressure gauge
- 1/2" NPT female port
- No output pressure regulator, quick connector or air hose included
- Condor Pressure Switch
- Thermal Overload Protector
- 120 PSI Maximum Pressure
- 230 Volt / 60 Hertz / 3-Phase (range 215V to 240V)
- Amp Draw - 15 Amps
- 20 Amp Breaker suggested
- Time to fill tank from empty to full - 191 Seconds
- Recovery time from 92 PSI to 120 PSI - 35 Seconds
- Less heat which dissipates more efficiently
- 60 Gallon ASME Steel 155 PSI Air Tank
- L (32-1/2") x W (28") x H (60-1/2")
- 60 lbs.
- Manual Drain Valve with Strainer cleanout
- Comes complete with (4) Air Filters
- Plug Type: Nema L15-20P (connect to L15-20R receptacle)
- Cord Length: 7ft
- 70/30 Duty Cycle Rating
- 1 Year Limited Warranty
