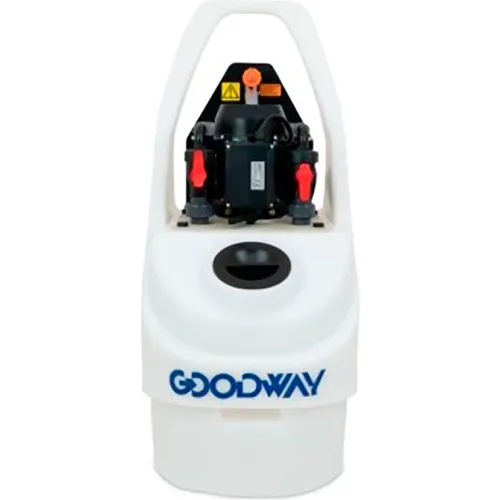

For the ultimate combination of descaling portability and performance, the updated GDS-C92-FWF is the answer. Constructed of heavy-duty polyethylene and acid-proof components, this descaling unit is designed for years of use in industrial applications. The secret to their success at removing scale lies in the innovative Flow Reversal Valve. During the descaling process, limescale dissolves and creates foam and gas, which acts as a barrier to further scale reduction. Using the Flow Reversal Valve allows the foam and gas to discharge into the tank, eliminating the barrier effect and considerably speeding up the descaling process.
Now with the latest update, the freshwater flush, adds two additional ports, a freshwater inlet port and a flush or dump outlet port. These additional ports now provide operators a safe and seamless way to allow fresh water to be added, or discharge dumped without the removal of circulation hoses during the descaling process. Simply adjust your valves to the dump position, open the water inlet valve, and the flushing process begins. Clean, safe, and simple.
Each unit is self-priming and safely contains chemicals within its integral tank, allowing for maximum user-friendliness.
The GDS-C92 will take care of small to medium boilers, chillers, heat exchangers, etc. This system uses a 21-gallon per minute (GPM) flow rate.
Note: Check local, state, and federal rules for the disposal of any used chemical/water in your area.
GDS-C92-FWF Scale Removal System includes:
- GDS-C92-FWF Scale Removal System w/15-gallon tank
- Multiple fittings, two 10' circulation hoses, one dump hose, one water inlet hose, and one overflow hose
- Acid proof pump and fittings
- Run dry, 21 GPM pump
- Compact design for easy transport and storage
- 15-gallon reservoir tank
- Venting cap for closed systems
- CE Certified
- Motor Power: 3/4 HP
- Input Power: 8.6 amps, 115 V, 60 Hz AC (Other options available)
- Water Flow: 21 GPM
- Pumps: Centrifugal
- Tank Capacity: 15 gallon
- Dimensions: 35" high x 15" wide x 23" deep
- Weight: 50 lbs net dry
