Kinedyne

Model # :WBB1654230

MPN #: FE8066-3

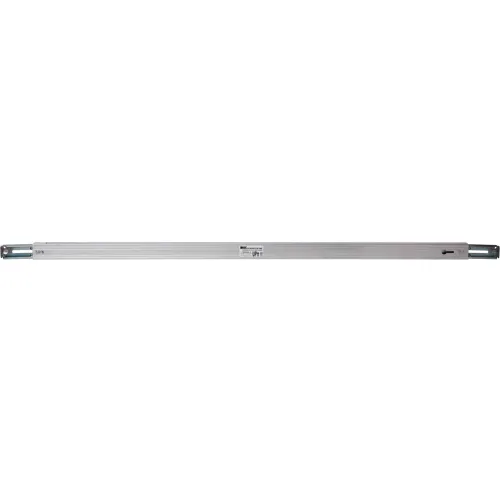

Kinedyne Series E A Standard Aluminum Beam FE8066-3 for 96"W and 102"W Trailers

Product Description
Kinedyne Series FE8066 Aluminum Decking/Shoring beams are made from extruded high strength Aluminum, designed to give maximum strength at the least possible weight. Head assemblies are all Steel, Zinc Plated and tapered for ease of operation. Trigger and spring are built for long-lasting positive lock control. Special length beams also available.
  • Decking/Vertical Rating: 2,200 lbs./1000 kgs.
  • Shoring/Horizontal Rating: 2,000 lbs./910 kgs.
  • Note: Working Load Limit based on evenly distributed load.
  • Adjusts from: 92.9" to 102.3" for 96" and 102" Trailers
  • Weight: 18.8 lbs., 8.5 kgs.


PRICE
$149.95

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight CapacityDecking 2200; Shoring 2000 lbs
Weight19.1 lbs
Adjustable Length92-7/8 - 102-5/16 in

Product Details

Assembly RequiredNo
TypeDecking/Shoring Beam
ColorBrown
SeriesSeries E/A
For Use With96" & 102" Trailers
MaterialAluminum
Package Quantity1
Manufacturers Part NumberFE8066-3
DutyMedium
BrandKinedyne
