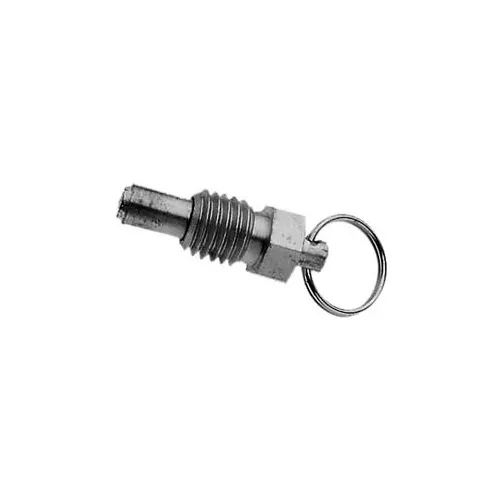

Stubby Hand Retractable Spring Plunger - Zinc Plated Steel 5/8-11 Thread

Indexing plungers GN 617-NI are standard units for a wide range of indexing mechanisms. Type G or GK with threaded plunger ends are for applications where a special knob to customer's request or where their own design is required, or for such cases where the spindle is linked directly to an operating mechanism. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers in stainless steel, without head, see GN 613-NI. And for indexing plungers in stainless steel, with rest position, see GN 617.NI. Features Threaded body: Stainless steel ...

GN 613-NI indexing plungers in stainless steel are a low cost alternative with reduced dimensions. Indexing plungers with threaded spindles are for applications where a special knob to customer's request or own design is required or for such cases where the spindle is linked directly to an operating mechanism. For an additional cost, a special installation tool for GN 613.1 is available. Two slots are provided in the upper end of the body which are accessible with the knob in its retracted position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. ...

Type G with the threaded spindle is for applications where a specific knob or special receptacle is required for operation. The maximum heat resistance of the nylon plastic hand knob: 110°C or 230°F. Features Two retracting strokes l1 per plunger diameter Identical dimensions l2 for GN 817 and GN 817.1 series Defined thread length by an undercut at the end of the thread

GN 717 are a range of low cost indexing plungers which function well in small dimensions. However, their use should be limited to such applications where high precision indexing is not required. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. Features Threaded body: Steel, Zinc-plated, blue passivated Plunger pin: Stainless steel, European Standard No. 1.4305 Spring: Stainless steel, European Standard No. 1.4310 Pull ring version: Stainless steel, European Standard No. 1.4310 Pull knob version: Matte black glass fiber reinforced nylon plastic, not ...

GN 717 are a range of low cost indexing plungers which function well in small dimensions. However, their use should be limited to such applications where high precision indexing is not required. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. Features Threaded body: Steel, Zinc-plated, blue passivated Plunger pin: Stainless steel, European Standard No. 1.4305 Spring: Stainless steel, European Standard No. 1.4310 Pull ring version: Stainless steel, European Standard No. 1.4310 Pull knob version: Matte black glass fiber reinforced nylon plastic, not ...
