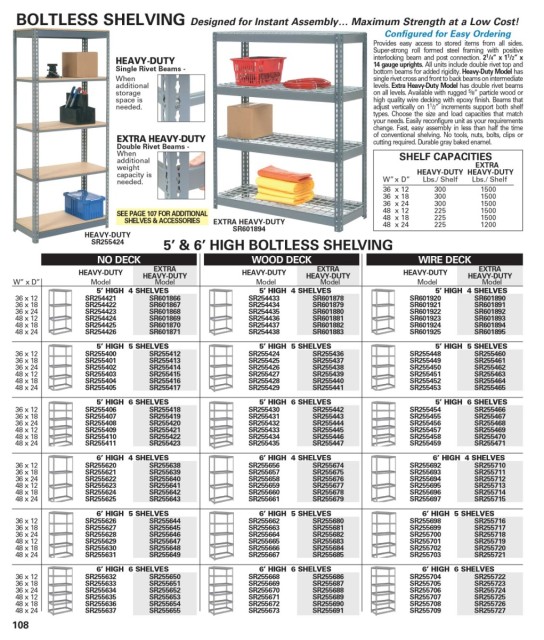

BOLTLESS SHELVING Designed for Instant Assembly… Maximum Strength at a Low Cost!
Configured for Easy Ordering
Provides easy access to stored items from all sides.
Super-strong roll formed steel framing with positive
1
1
HEAVY-DUTY interlocking beam and post connection. 2 /4” x 1 /2” x
14 gauge uprights. All units include double rivet top and
Single Rivet Beams - bottom beams for added rigidity. Heavy-Duty Model has
When single rivet cross and front to back beams on intermediate
additional levels. Extra Heavy-Duty Model has double rivet beams
storage on all levels. Available with rugged /8” particle wood or
5
space is high quality wire decking with epoxy finish. Beams that
1
needed. adjust vertically on 1 /2” increments support both shelf
types. Choose the size and load capacities that match
your needs. Easily reconfigure unit as your requirements
change. Fast, easy assembly in less than half the time
EXTRA HEAVY-DUTY of conventional shelving. No tools, nuts, bolts, clips or
cutting required. Durable gray baked enamel.
Double Rivet Beams -
When SHELF CAPACITIES
additional
weight EXTRA
capacity is HEAVY-DUTY HEAVY-DUTY
needed. W” x D” Lbs./ Shelf Lbs./ Shelf
36 x 12 300 1500
36 x 18 300 1500
36 x 24 300 1500
SEE PAGE 107 FOR ADDITIONAL 48 x 12 225 1500
SHELVES & ACCESSORIES EXTRA HEAVY-DUTY 48 x 18 225 1500
1200
48 x 24
225
SG601894
HEAVY-DUTY
SG255424 5’ & 6’ HIGH BOLTLESS SHELVING
NO DECK WOOD DECK WIRE DECK
EXTRA EXTRA EXTRA
HEAVY-DUTY HEAVY-DUTY HEAVY-DUTY HEAVY-DUTY HEAVY-DUTY HEAVY-DUTY
W” x D” Model Model Price Model Model Price Model Model Price
5’ HIGH 4 SHELVES 5’ HIGH 4 SHELVES 5’ HIGH 4 SHELVES
36 x 12 SG254421 SG601866 $104.00 SG254433 SG601878 $127.00 SG601920 SG601890 $163.00
36 x 18 SG254422 SG601867 114.00 SG254434 SG601879 130.00 SG601921 SG601891 186.00
36 x 24 SG254423 SG601868 118.00 SG254435 SG601880 143.00 SG601922 SG601892 210.00
48 x 12 SG254424 SG601869 120.00 SG254436 SG601881 141.00 SG601923 SG601893 202.00
48 x 18 SG254425 SG601870 127.00 SG254437 SG601882 149.00 SG601924 SG601894 220.00
48 x 24 SG254426 SG601871 132.00 SG254438 SG601883 161.00 SG601925 SG601895 252.00
5’ HIGH 5 SHELVES 5’ HIGH 5 SHELVES 5’ HIGH 5 SHELVES
36 x 12 SG255400 SG255412 114.00 SG255424 SG255436 141.00 SG255448 SG255460 186.00
36 x 18 SG255401 SG255413 122.00 SG255425 SG255437 149.00 SG255449 SG255461 217.00
36 x 24 SG255402 SG255414 130.00 SG255426 SG255438 163.00 SG255450 SG255462 244.00
48 x 12 SG255403 SG255415 141.00 SG255427 SG255439 157.00 SG255451 SG255463 232.00
48 x 18 SG255404 SG255416 153.00 SG255428 SG255440 182.00 SG255452 SG255464 272.00
48 x 24 SG255405 SG255417 148.00 SG255429 SG255441 183.00 SG255453 SG255465 283.00
5’ HIGH 6 SHELVES 5’ HIGH 6 SHELVES 5’ HIGH 6 SHELVES
36 x 12 SG255406 SG255418 130.00 SG255430 SG255442 151.00 SG255454 SG255466 211.00
36 x 18 SG255407 SG255419 135.00 SG255431 SG255443 171.00 SG255455 SG255467 244.00
36 x 24 SG255408 SG255420 141.00 SG255432 SG255444 176.00 SG255456 SG255468 258.00
48 x 12 SG255409 SG255421 149.00 SG255433 SG255445 174.00 SG255457 SG255469 261.00
48 x 18 SG255410 SG255422 160.00 SG255434 SG255446 201.00 SG255458 SG255470 290.00
48 x 24 SG255411 SG255423 157.00 SG255435 SG255447 210.00 SG255459 SG255471 320.00
6’ HIGH 4 SHELVES 6’ HIGH 4 SHELVES 6’ HIGH 4 SHELVES
36 x 12 SG255620 SG255638 118.00 SG255656 SG255674 121.00 SG255692 SG255710 172.00
36 x 18 SG255621 SG255639 120.00 SG255657 SG255675 133.00 SG255693 SG255711 191.00
36 x 24 SG255622 SG255640 122.00 SG255658 SG255676 146.00 SG255694 SG255712 215.00
48 x 12 SG255623 SG255641 127.00 SG255659 SG255677 145.00 SG255695 SG255713 203.00
48 x 18 SG255624 SG255642 130.00 SG255660 SG255678 155.00 SG255696 SG255714 225.00
48 x 24 SG255625 SG255643 133.00 SG255661 SG255679 164.00 SG255697 SG255715 244.00
6’ HIGH 5 SHELVES 6’ HIGH 5 SHELVES 6’ HIGH 5 SHELVES
36 x 12 SG255626 SG255644 127.00 SG255662 SG255680 143.00 SG255698 SG255716 191.00
36 x 18 SG255627 SG255645 130.00 SG255663 SG255681 155.00 SG255699 SG255717 225.00
36 x 24 SG255628 SG255646 133.00 SG255664 SG255682 164.00 SG255700 SG255718 244.00
48 x 12 SG255629 SG255647 145.00 SG255665 SG255683 161.00 SG255701 SG255719 234.00
48 x 18 SG255630 SG255648 146.00 SG255666 SG255684 174.00 SG255702 SG255720 256.00
48 x 24 SG255631 SG255649 151.00 SG255667 SG255685 187.00 SG255703 SG255721 281.00
6’ HIGH 6 SHELVES 6’ HIGH 6 SHELVES 6’ HIGH 6 SHELVES
36 x 12 SG255632 SG255650 129.00 SG255668 SG255686 157.00 SG255704 SG255722 217.00
36 x 18 SG255633 SG255651 143.00 SG255669 SG255687 175.00 SG255705 SG255723 251.00
36 x 24 SG255634 SG255652 145.00 SG255670 SG255688 183.00 SG255706 SG255724 273.00
48 x 12 SG255635 SG255653 155.00 SG255671 SG255689 176.00 SG255707 SG255725 265.00
48 x 18 SG255636 SG255654 158.00 SG255672 SG255690 196.00 SG255708 SG255726 283.00
48 x 24 SG255637 SG255655 164.00 SG255673 SG255691 215.00 SG255709 SG255727 322.00
