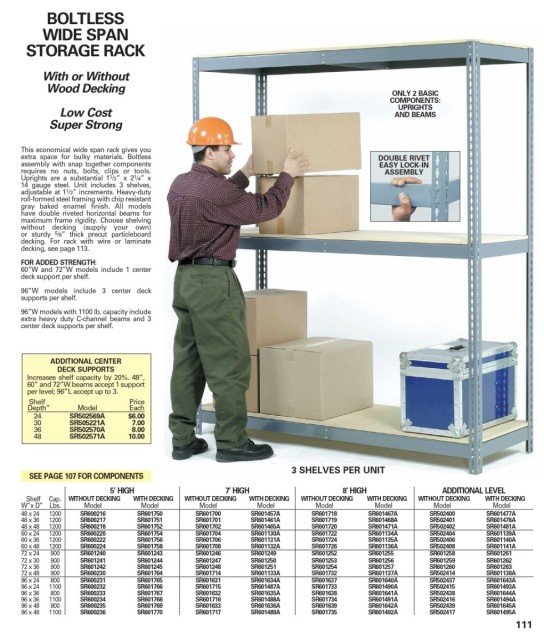

BOLTLESS
WIDE SPAN
STORAGE RACK

With or Without
Wood Decking ONLY 2 BASIC
COMPONENTS:
UPRIGHTS
Low Cost AND BEAMS
Super Strong

This economical wide span rack gives you
extra space for bulky materials. Boltless DOUBLE RIVET
assembly with snap together components EASY LOCK-IN
requires no nuts, bolts, clips or tools. ASSEMBLY
Uprights are a substantial 1 1 /2” x 2 1 /4” x
14 gauge steel. Unit includes 3 shelves,
adjustable at 1 1 /2” increments. Heavy-duty
roll-formed steel framing with chip resistant
gray baked enamel finish. All models
have double riveted horizontal beams for
maximum frame rigidity. Choose shelving
without decking (supply your own)
or sturdy 5 /8” thick precut particleboard
decking. For rack with wire or laminate
decking, see page 115.
FOR ADDED STRENGTH:
60”W and 72”W models include 1 center
deck support per shelf.
96”W models include 3 center deck
supports per shelf.
96”W models with 1100 lb. capacity include
extra heavy duty C-channel beams and 3
center deck supports per shelf.

ADDITIONAL CENTER
DECK SUPPORTS
Increases shelf capacity by 20%. 48”,
60” and 72”W beams accept 1 support
per level; 96”L accept up to 3.
Shelf Price
Depth” Model Each
24 SG502569A $6.00
30 SG505221A 7.00
36 SG502570A 8.00
48 SG502571A 10.00

3 SHELVES PER UNIT
SEE PAGE 107 FOR COMPONENTS
5’ HIGH 7’ HIGH 8’ HIGH ADDITIONAL LEVEL
Shelf Cap. WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING WITHOUT DECKING WITH DECKING
W”x D” Lbs. Model Price Model Price Model Price Model Price Model Price Model Price Model Price Model Price
48 x 24 1200 SG600216 $119.00 SG601750 $113.00 SG601700 $159.00 SG601457A $122.00 SG601718 $164.00 SG601467A $129.00 SG502400 $27.00 SG601477A $48.00
48 x 36 1200 SG600217 125.00 SG601751 135.00 SG601701 166.00 SG601461A 141.00 SG601719 105.00 SG601468A 155.00 SG502401 29.00 SG601478A 48.00
48 x 48 1200 SG600218 130.00 SG601752 157.00 SG601702 105.00 SG601465A 165.00 SG601720 115.00 SG601471A 173.00 SG502402 30.00 SG601481A 58.00
60 x 24 1200 SG600220 100.00 SG601754 141.00 SG601704 110.00 SG601130A 151.00 SG601722 119.00 SG601134A 157.00 SG502404 29.00 SG601139A 53.00
60 x 36 1200 SG600222 110.00 SG601756 171.00 SG601706 120.00 SG601131A 176.00 SG601724 129.00 SG601135A 183.00 SG502406 30.00 SG601140A 65.00
60 x 48 1200 SG600224 122.00 SG601758 201.00 SG601708 133.00 SG601132A 210.00 SG601726 136.00 SG601136A 218.00 SG502408 38.00 SG601141A 76.00
72 x 24 900 SG601240 105.00 SG601243 155.00 SG601246 117.00 SG601249 165.00 SG601252 125.00 SG601255 171.00 SG601258 30.00 SG601261 51.00
72 x 30 900 SG601241 114.00 SG601244 171.00 SG601247 122.00 SG601250 181.00 SG601253 132.00 SG601256 187.00 SG601259 31.00 SG601262 65.00
72 x 36 900 SG601242 117.00 SG601245 183.00 SG601248 127.00 SG601251 192.00 SG601254 134.00 SG601257 202.00 SG601260 34.00 SG601263 69.00
72 x 48 900 SG600230 127.00 SG601764 222.00 SG601714 137.00 SG601133A 232.00 SG601732 143.00 SG601137A 238.00 SG502414 38.00 SG601138A 80.00
96 x 24 800 SG600231 172.00 SG601765 242.00 SG601631 203.00 SG601634A 252.00 SG601637 217.00 SG601640A 261.00 SG502437 44.95 SG601643A 75.95
96 x 24 1100 SG600232 151.00 SG601766 218.00 SG601715 187.00 SG601487A 236.00 SG601733 173.00 SG601490A 233.00 SG502415 58.00 SG601493A 82.00
96 x 36 800 SG600233 187.00 SG601767 296.00 SG601632 213.00 SG601635A 309.00 SG601638 227.00 SG601641A 320.00 SG502438 52.95 SG601644A 89.95
96 x 36 1100 SG600234 173.00 SG601768 266.00 SG601716 182.00 SG601488A 274.00 SG601734 191.00 SG601491A 278.00 SG502416 58.00 SG601494A 100.00
96 x 48 800 SG600235 211.00 SG601769 359.00 SG601633 230.00 SG601636A 375.00 SG601639 244.00 SG601642A 382.00 SG502439 57.95 SG601645A 112.95
96 x 48 1100 SG600236 196.00 SG601770 318.00 SG601717 206.00 SG601489A 327.00 SG601735 212.00 SG601492A 340.00 SG502417 65.00 SG601495A 119.00
111
