BESTSELLER
AmScope

Model # :WBM00383

MPN #: B100B-MS

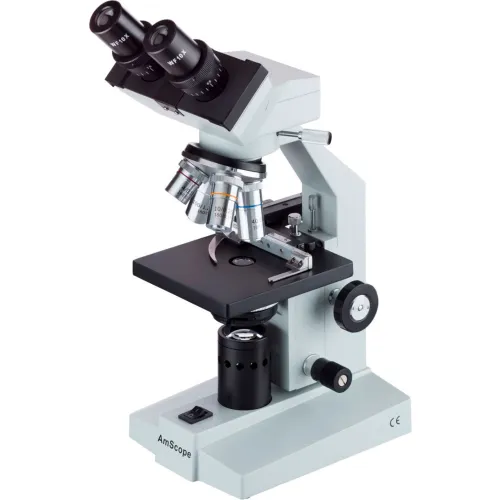

AmScope B100B-MS 40X-2000X Binocular Biological Microscope with Mechanical Stage

Product Description
This is a brand new binocular compound microscope that offers eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. It comes with a binocular sliding head, two pairs of widefield eyepieces, four Achromatic objectives, coarse & fine focusing, mechanical stage, and electrical illumination system. It is an ideal instrument for clinical examination, teaching demonstration, and biological, bacteriological & pharmaceutical researches.

Features:
  • 45 Degree Inclined 360 Degree Swiveling Sliding Binocular Head
  • Mechanical Stage with Stain Resistant Finish for Easy Slide Gliding Control
  • Separate Coarse & Fine Focusing
  • Fully Coated Optical System with High Resolution
  • Crystal Clear Sharp Images
  • High Quality Professional Grade Microscope
  • Great for Clinics, Vets, Doctors, Students
  • Four Levels of Magnification: 40X, 80X, 100X, 200X, 400X, 800X,1000X & 2000X
  • Upward Stage Stopper to Protect Slides and Objectives
  • Abbe Condenser with Iris Diaphragm & Filters
  • Built-In Illumination System
  • Focusing Control Knobs on Both Sides
  • Four DIN Achromatic Objectives
  • Two Sets of Eyepieces, WF10X & WF20X, Included
  • Full Optical Glass Elements
  • All Metal Mechanical Components
  • Precise Ground Glass Lens
  • Adjustable Interpupillary Distance
  • Adjustable Diopter on Oculars
  • Solid Metal Frame Construction with Stain Resistant Enamel Finish
  • Spare Bulb, Fuse and a Bottle of Immersion Oil Included
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
Specifications:
  • Nosepiece: quadruple
  • Head: 45 degree inclined sliding binocular
  • Interpupillary Distance: 2-3/16" - 3" (55 - 75mm)
  • Wide-field Eyepiece: WF10X/18 & WF20X
  • Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
  • Stage Dimensions: 4-5/16" x 4-3/4" (110x120mm)
  • Abbe Condenser: NA=1.25 with iris diaphragm & filter
  • Illumination: tungsten lamp, 110V/20W (220V version available)
  • Accessories: dust cover, green & blue filters, and a bottle of immersion oil
Packing List :
  • One Binocular Microscope Sliding Head
  • One Microscope Body Frame w/ Stage, Base and Illumination System
  • Four DIN Standard Objectives, 4X, 10X, 40X and 100X
  • One Pair of Widefield 10X Eyepieces
  • One Pair of Widefield 20X Eyepieces
  • One Mechanical Stage
  • One Wrench for Focusing Tension Adjustment
  • Two Color Filters
  • One Dust Cover
  • One Spare Bulb
  • Sample Immersion Oil
  • User's Manual
PRICE
$415.95

1
1
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Eyepiece23mm

Product Details

Condenser TypeBrightfield
TypeCompound Microscope
Head TypeBinocular
IrisWith Iris
Number of Light Bulbs1 lbs
ColorWhite
Power Supply110V
Eyepiece Magnification10X, 20X
Condenser OpticsNA 1.25
Field ViewWidefield
CondenserAbbe-Spiral with Diaphragm
Light SourceTungsten
MaterialMetal
OpticsAchromatic
DescriptionBinocular Biological Microscope with Mechanical Stage
Magnification Range40X-2000X
Package Quantity1
Manufacturers Part NumberB100B-MS
Objective4X, 10X, 40X, 100X
Light Power20W
StageSingle-layer Mechanical Stage
BrandAmScope

Warranty

Warranty5 yr
