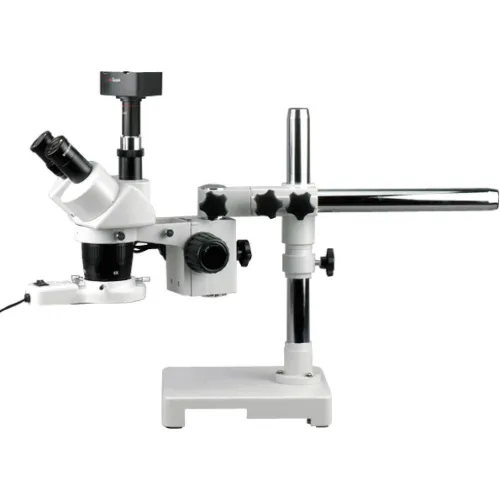

The 5MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. This microscopy system is an ideal instrument for research labs, gemologists and anyone in semiconductor and/or electronic industry.
Features:
- 20X-40X Stereo Microscope with SUPER Widefield of View
- 5MP High Resolution, High Quality, USB2.0 Color Digital Camera
- Captures Microscope Images and Streams Live Video on Your PC Computer Screen
- Saves Still Images in BMP, TIFF, JPG, PICT, PTL and Other Formats
- Measures Lengths, Angles, Areas and etc. across Images
- 0.5X Reduction Lens Included
- Quick and Easy USB2.0 Connection
- Easy Installation and Operation
- Compatible with Twain, DirectShow, Amcap, Minisee other third-party software
- Free life time software upgrades
- Fluorescent Ring Light with Mounting Adapter Included
- Trinocular Design for High Quality Photo, Video or Computer Attachment
- Upright Tube for USB Digital Camera, Video Camcorder or CCD Camera
- Versatile Boom Stand Covering Large Working Area
- High Resolution with Great Flatness and Contrast
- Erect Stereo Sharp Images over a SUPER Widefield of View
- Accurate Alignment Ensuring Fatigue-Free Long Time Viewing
- Crystal Clear Original True Color Images
- 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
- 30mm WF10X/20 SUPER Widefield Eyepieces
- Ocular-Tube with Adjustable Diopter
- Adjustable Interpupillary Distance
- Full Optical Glass Elements
- Precise Ground Glass Lenses
- Large Working Distance
- Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
- Rugged Solid Cast Steel Base
- All Metal Mechanical Components
- Rubber Eye-guards Included
- Manufactured under ISO 9001 Quality Control Standard
- Excellent Five (5) Year Manufacturer Warranty
- Head: 45 degree inclined 360 degree swiveling trinocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20
- Objective: 2X and 4X
- Diopter Adjustment: +/-5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Working Distance: 4" (100mm)
- Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
- Illumination 8W fluorescent ring bulb
- Power Supply: 110/60Hz (220V/50Hz available)
- Image Sensor: Micron (color)
- Sensor Type: CMOS
- Sensor Size: 1/2.5"
- Pixel Size: 2.2μm
- Resolution: 5.0MP
- Frame Rate: 30 fps @ 640x480, 8 fps @ 2592x1944
- Sensitivity: 0.53V/lux-sec (550 nm)
- Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX
