Features:
- Measures AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity
- Built-in non-contact voltage detector and double molded plastic housing
- 4,000-count backlit LCD display
- Low battery indicator and auto shut-off (after 30 minutes)
- CAT III 600V safety rating
- Resistance: Range: 400Ω, 4, 40, 400kΩ, 4, 40MΩ
- Accuracy: 400Ω, 4, 40, 400kΩ: ±(1% rdg. + 5 dgt.)MΩ: ±(1.2% rdg. + 10 dgt.)40MΩ: ±(2% rdg. + 10 dgt.)
- Resolution: 0.1, 1, 10, 100Ω, 1, 10kΩ
- Capacitance: Range: 50, 500nF, 5, 50, 100µF
- Accuracy: 50nF: ±(4% rdg.+ 30 dgt.)500nF: ±(3% rdg. + 15 dgt.)5, 50, 100µF: ±(4% rdg. + 10 dgt.)
- Resolution:0.01, 0.1, 1, 10, 100nF
- Frequency: Range:9.999Hz to 60kHz
- Accuracy: ±(0.1% rdg. + 5 dgt.)
- Resolution: 0.001Hz to 0.001MHz
- Continuity Check: Audible signal if resistance ≤10Ω
- Operating Temperature: 32 to 104°F (0 to 40°C)
- Storage Temperature: 14 to 122°F (-10 to 50°C)

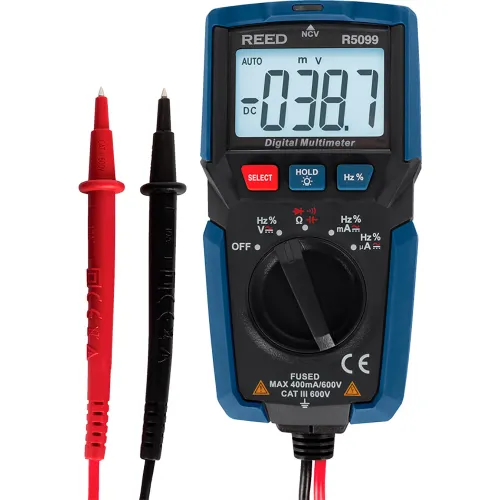

- Compact Multimeter
- Test Leads
- Batteries(2 x AAA)
Ideal Applications for the REED R5099: - Testing batteries
- Testing household wiring
- Testing electric motors
- Testing power supplies
What's included with the REED R5099:
- Range: AC: 4, 40, 400, 600V,DC: 400mV, 4, 40, 400, 600V
- Accuracy: AC: 4, 40V ±(1.2% rdg. + 5 dgt.)400, 600V ±(2% rdg.+ 10 dgt.)DC: 400mV ±(1% rdg.+ 8 dgt.)4, 40V ±(0.5% rdg.+ 5 dgt.) 400, 600V ±(0.8% rdg.+ 5 dgt.)
- Resolution: AC: 0.01, 0.01, 0.1, 1V,DC: 0.1mV, 0.001, 0.01, 0.1, 1V
- Range: 400µA, 4, 40, 400mA
- Accuracy: AC: 400µA, 4, 40, 400mA ±(2% rdg. + 8 dgt.)DC: 400µA, 4, 40, 400mA ±(1.8% rdg. + 5 dgt.)
- Resolution: 0.1µA, 0.001, 0.01, 0.1mA
