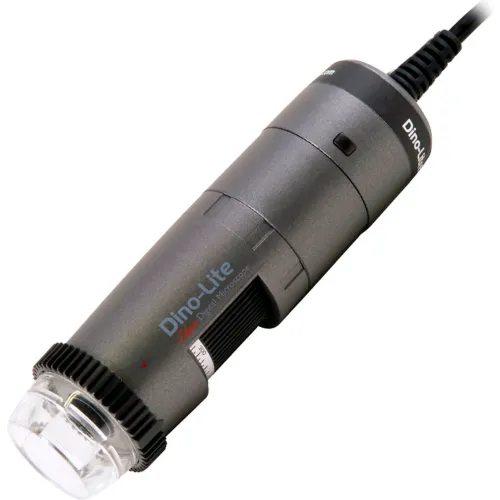

Dino-Lite Edge USB Digital Microscope with FLC & Polarizer, 10x - 330x
Write a Review
|
Questions & Answers (0)
Product Description
The AF4135ZTE digital microscope excels with its versatile magnification range of 10x ~ 330x, ensuring detailed exploration across various applications. This model also includes an adjustable polarizer, FLC lighting control, and is compatible with the WF-20 Wi-Fi streamer (sold separately). Digital microscope has 1.3 Megapixel Edge sensor
The measurement feature is included in the software. Measurements can be performed in different units (inch/mil/mm/um) and types including straight lines, circles, angles, arches grids and more.
Polarization can be switched on/off or can be adjusted to offer full or half polarization for controlling glare.
Flexible Lighting Control provides lighting adjustment options as well as the ability to turn on or off LED's by quadrant.
This models expanded magnification range offers a similar working distance range compared to the previous AF4115ZT series, with the ability to achieve higher magnifications.
The measurement feature is included in the software. Measurements can be performed in different units (inch/mil/mm/um) and types including straight lines, circles, angles, arches grids and more.
Polarization can be switched on/off or can be adjusted to offer full or half polarization for controlling glare.
Flexible Lighting Control provides lighting adjustment options as well as the ability to turn on or off LED's by quadrant.
This models expanded magnification range offers a similar working distance range compared to the previous AF4115ZT series, with the ability to achieve higher magnifications.
PRICE
$679.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 1-5/16 in |
| Weight | 0.2 lbs |
| Cable Length | 71-5/8 |
| Dimensions | 4-3/8 (H) x 1-5/16 (D) in |
Product Details
| Lighting | 8 White LEDs |
| Calibration Function | Yes |
| Frame Rate | 30 FPS |
| Working Distance | Standard |
| Flexible LED Control | Yes |
| Material | ABS Plastic |
| Lens Material | Glass |
| Wireless Ready | Yes |
| Manufacturers Part Number | AF4135ZTE |
| Brand | Dino-Lite |
| Type | Digital Microscope |
| Polarized | Yes |
| Package Includes | Microscope, Carry Pouch, Edge Calibration Target, Alternate End Caps |
| Color | Gray |
| Measurement Function | Yes |
| Save Formats | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX, SWF, JPEG |
| Resolution | 1280 × 960 pixels |
| Automatic Magnification Reading | No |
| Operating System | Windows 7, 8, 10 & 11, Mac OS 10.12+ |
| Megapixels | 1.3 |
| Package Quantity | 1 |
| Description | Wireless Ready Expanded Magnification |
| Interface | USB 2.0 |
| Magnification Range | 10x - 330x |
| Sensor | CMOS |
| Microtouch Sensor | Yes |
Warranty
| Warranty | 2 yr |
Compliance & Certifications
| Certifications | CE, FCC, RoHS |
