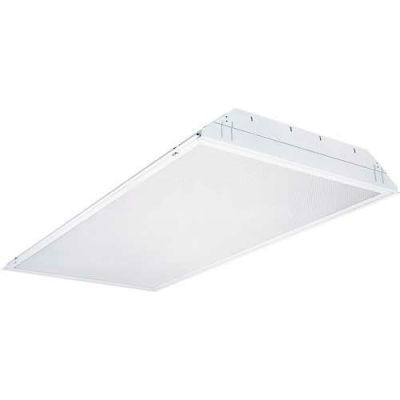

Lithonia 2GT8 3 32 A12 MV 1/4 1/2 GEB10IS LSTA11 2x4 T8 Troffer 3 Lamp 32w One 4-Lamp Ballast

Works with Global # B547598

Lithonia 2GT8 3 32 A12 MV 1/4 1/2 GEB10IS LSTA11 2x4 T8 Troffer 3 Lamp 32w One 4-Lamp Ballast

Item #: WBB547591

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $100.95

Save $5.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

2x4 T8 Troffer, 3 Lamp, 32w, One 4-Lamp Ballast And One 2-Lamp Ballast

Intended Use:
Labor Saving Tadem (LST)- Two troffers prewired with a interconnection cable and plug. You install the "Master" (LSTA) fixture and plug in the "Slave" (LSTB) fixture thus saving on the installation cost. The "Master" fixture contains the ballast for both the LSTA & LSTB fixtures.

Features:
Innovative low-profile design optimized around T8 lamps and low-profile electronic ballasts. Hemmed sides provide smooth edges for easy handling during installation. Standard steel door frame features precise flush mitered corners. Unique design delivers a premium extruded appearance. Housing and door frame interface provides a superior mechanical light seal without the use of foam gasketing. Standard latch provides spring action. Door latches and hinges from either side. Improved performance higher fixture efficiency. Integral T-bar safety clips are standard no need to install separate clips. Aluminum door frames available, flush or regressed. Compatible with most ceiling types. Field trim modification kits also available. U.S. patents 6,210,025; 6,231,213; 6,213,625; 2,288,471.

Listings:
UL Listed. CUL Listed or CSA Certified to Canadian standards optional. NOM Certified optional. Protected by one or more of U.S. Patent Nos. 6,210,025; 6,231,213; 2,288,471.

Construction:
Innovative low-profile design optimized around T8 lamps and low-profile electronic ballasts. Hemmed sides provide smooth edges for easy handling during installation. Standard steel door frame features precise flush mitered corners and spring- action latches. Unique design delivers a premium extruded appearance. Housing and door frame interface provides a superior mechanical light seal without the use of foam gasketing. Improved performance higher fixture efficiency. Integral T-bar safety clips are standard no need to install separate clips. Aluminum door frames available, flush or regressed. Compatible with most ceiling types. Field trim modification kits also available.Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

Product Specifications

  • BRANDLithonia Lighting
  • LAMP NUMBER3
  • VOLTS120/277
  • MANUFACTURERS PART NUMBER2GT8 3 32 A12 MVOLT 1/4 1/2 GEB10IS LSTA11
  • WEIGHT LBS25.45
  • SERIES2GT10
  • LAMP TYPE32WT8
  • DIFFUSER#12 pattern acrylic
  • BALLAST TYPEInstant Start
  • LAMPOne 4-lamp ballast
  • DESCRIPTIONGeneral T8 Troffer
  • VOLTAGEMulti
  • CI CODE672363
  • PRODUCT GROUPFluorescent
  • PRODUCT FAMILYGT8
  • LENGTH INCHES48
  • WIDTH INCHES24
  • HEIGHT INCHES3.69
