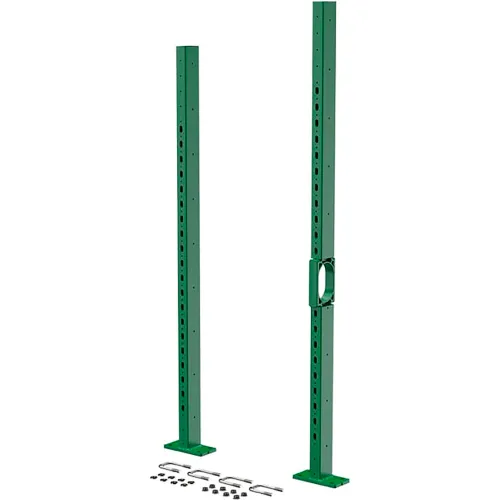

Model 6810 In-wall floor mounted fixture carrier: Two 2-½" x 1-½" x 1/8" thick structural steel uprights having 6" x 3" x 3/8" thick welded coated steel 4-bolt floor flanges, supplied with 'U' bolts and hardware. For use in conjunction with Haws® in-wall mounting plates 6700, 6700.4, 6710, 6715, 6717, or 6776, for extra heavy duty fixture support. Fits inside standard 2" x 4" wall construction. Suitable for use with either 3/8" or 1/2" concrete anchors (by others). Includes mounting holes for plumbing stub out bracket and electrical boxes, and a on-site custom-fit side drain port. This port can be placed at any height. Exceeds requirements when tested in accordance to ASME Standard A112.6.1M. Design was independently verified as suitable to meet HCAI and CBC anchor spacing requirements.
Share
Spec Sheet
Haws® Fixture Carrier with Custom Fit Side Drain Port, In-Wall Floor Mount
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$919.00
1
1
Ships in 6 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Product Details
| Type | Fixture Carrier |
| Mounting Location | In-Wall Mount |
| Includes | Mounting Holes For Plumbing, A On-Site Custom-Fit Side Drain Port |
| Material | Steel |
| Description | In-Wall Floor Mounted Fixture Carrier |
| Color | Green |
| Manufacturers Part Number | 6810 |
| Brand | Haws |
