- Frontline troubleshooting tool helps technicians quickly pinpoint active ground faults in solar photovoltaic (PV) systems
- Three-piece troubleshooting system is designed to optimize field technician's workflow
- Integrated diagnostic functionality includes analyze, fault tracing, open circuit, and mapping functions
- Identify and locate active ground faults anywhere within DC system with easy-to-follow traceable signal
- Non-contact signal tracing reduces amount of time it takes to locate active ground faults and decreases
- exposure to electrical hazards
- FaultTrack technology detects active faults and generates traceable signal through fault path for identifying precise point of failure
- Enables fault path tracing without needing to repeatedly disconnect conductors or brute-force test each individual string
- CAT III 1500VDC/CAT IV 600V rated transmitter and receiver, clamp rated for use on insulated conductors up to 1500V
- Measures both AC and DC current up to 60A for safely
- troubleshooting individual strings or modules with greater accuracy
- Thin jaw design makes it easy to access combiner boxes and tight spaces
- Captures AC/DC volts, AC/DC mV, AC/DC VA, continuity, resistance, capacitance, AC/DC amps, and Hz
- Bright backlit LCD screen and illuminated keypad for easier working conditions in direct and low-light conditions
- Visual and audio polarity indicators with ON/OFF function help prevent accidental module wiring issues
- User-defined limit gauge for quick GO/NO-GO troubleshooting decisions
- Unique multimeter readiness self-check helps ensure that meter is ready to test
- Save and log measurements to internal memory and view them on mobile device via Fluke® Connect
- CAT III 1500V/CAT IV 1000V rated to meet safety requirements of test equipment and PV array electrical installations

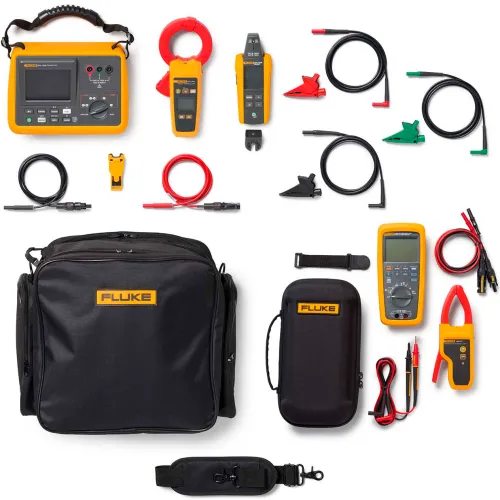

- 1 - GFL-1500 Transmitter
- 1 - GFL-1500 Receiver
- 1 - GFL-1500 Signal Tracing Clamp
- 1 - MC4 Test Lead Set
- 1 - Test Lead Set, 1500V Rated
- 1 - Alligator Clip Set
- 1 - MC4 Unlocking Tool
- 1 - Soft Carrying Case
- 1 - Backpack-Style Shoulder Strap
- 14 - AA Alkaline Batteries
- 1 - Solar Digital Multimeter (283 FC)
- 1 - Wireless Current Clamp, 60A (a283 FC)
- 1 - Solar MC4 Test Lead Set, Red/Black (PVLEAD1)
- 1 - TwistGuard Silicone Test Lead Set (TL175-HV)
- 1 - Premium Carrying Case
- 1 - Magnetic Hanging Strap (TPAK)
