- TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
- Selectable AC filter (Smoothing mode) helps display steadier reading when input signal is changing rapidly or noisily
- Adjustable recording and auto hold thresholds, specify percentage change in readings that begins new event
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight
- Logging function with expanded memory for unattended monitoring of signals over time
- Using on-board TrendCapture users can graphically review logged readings without needing PC
- Store up to 15,000 recorded events
- Save multiple logging sessions before PC download is necessary
- Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current, useful for measuring and comparing differences in motor winding resistance or contact resistance
- Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment
- LoZ Volts: Low impedance voltage function for eliminating ghost voltages and recommended when testing for absence or presence of live power
- Information button: On-board help screens for measurement functions - just press "i" button
- Real-time clock for automatic time stamping of saved readings
- Relative mode to remove test lead resistance from low ohms or capacitance measurements
- True-RMS AC voltage and current for accurate measurements on non linear signals
- Measure up to 10 A (20 A for 30 seconds)
- 100 mF capacitance range
- Peak capture to record transients as fast as 250 µs
- Optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
- Optically isolated communication port for transferring data to PC (USB cable and software optional)
- Compatible with Fluke® Connect (requires IR 3000 FC infrared connector, not included)
- Current range: 1A to 400A AC
- Frequency range: 5 Hz to 20 kHz (-3 dB
- Division ratio: 1000:1
- Safety rating(s): CAT IV 600 V, CAT III 1000V
- 1 mA/Amp output guarantees easy reading on you meter
- Take accurate current readings without breaking circuits
- Soft non-slippery over-mold handle prevents accidental contact with live wiring

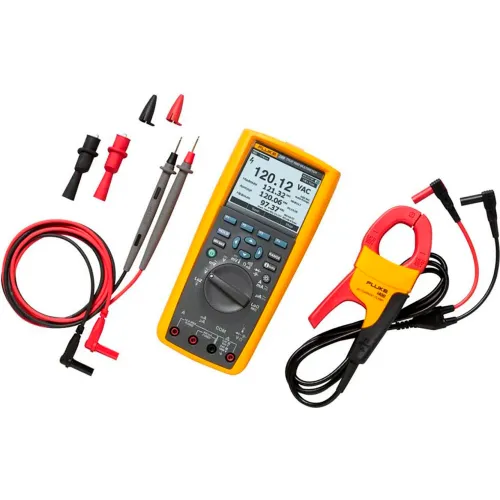

- 1 - True-RMS Data Logging Digital Multimeter (289)
- 1 - 400A AC Current Clamp (i400)
- 1 - Flexible Silicone Test Lead Set (TL71)
- 1 - Threaded Alligator Clip Set (AC175)
