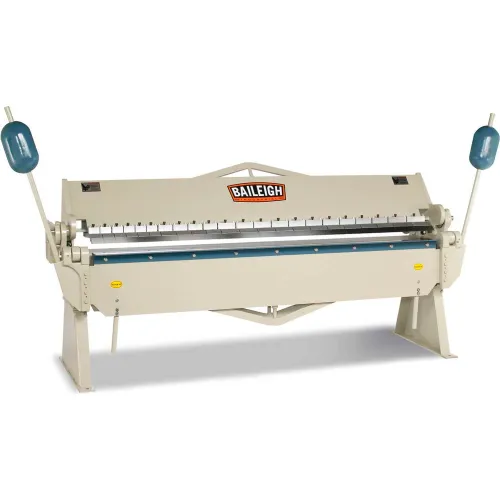

Baileigh Industrial Heavy Duty Manually Operated Box and Pan Finger Brake, 8'L, 12 Gauge

This hydraulic box and pan brake improves on our manual BB-12014 with adjustable angle auto-stopbending and more power. A welded steel frame ensures accuracy and prevents twisting. Maximum capacity of 14 gauge mild steel or 18 gauge stainless steel. 10-foot (120") working width. Maximum bend angle of 135°. Runs on 220-volt 3-phase power. Industrial-grade hydraulic system cuts down on operator effort for production runs, making your shop more efficient and saving you money. Simple to operate with adjustable angle auto-stop: Dial in the desired bend degree (including springback). Load ...

An industry breakthrough, this electromagnetic box and pan brake lets you make fully-enclosed ducts-impossible on a traditional box brake. Recommended for: HVAC shops, industrial art shops, and general sheet metal fabrication shops. Making ductwork, triangles, alternate bends on varying planes, round items such as scrolling applications, and much more. Important Information: To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty Features: Same ...

The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space. Maximum capacity of 20 gauge mild steel for all functions. Handles material up to 12" wide, just right for those small jobs. Slip roll portion on top has hardened and polished shafts for long life. Minimum rolling diameter of 1.54". 3 grooves in the roll let you form wire perfectly. Adjustable fingers on the top beam can make boxes of varying sizes with. Press brake portion in the middle gives you a maximum bend angle of 90° for ...

Simple to use, this hydraulic press brake shows the encoder-controlled bend depth and back gauge positions on separate DROs. A heavy steel frame ensures reliable production. Powerful, Easy-to-Learn Hydraulic System Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production 2 encoder-controlled hydraulic cylinders move the top beam Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time It takes a just few seconds to change the top beam pressure and ...

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops. 52" width lets you roll, bend, and shear 4' x 8' sheets. Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom. 1.70" minimum rolling diameter. Hardened, adjustable back and top rolls can form different thicknesses. Top roll can swing away from the machine for convenient material removal. 3 grooves on the roll can form wire or round rod. ...
