Brawn Mixer

Model # :WBB3085810

MPN #: BD100H40-1-FC-340-1P5.0-1

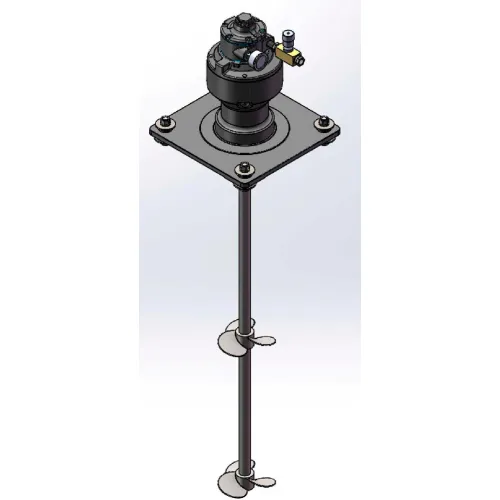

Brawn Mixer Heavy-Duty Tote Mixer 1100 Quarts Cap. Air Motor, 1 HP, Direct Drive, 5 Impeller Dia

Product Description
Brawn High-Torque, Direct Drive, Heavy-Duty Tote Mixers. Used for 275 gallon composite totes. Fluids can have a maximum specific gravity of 1.2 and viscosity of 100cP. Powered by a 1HP air motor (lubricator H50 required). Attach your mixer to the tote mounting bracket (TMB40CL) with the sturdy plate mount as indicated. Shafts can be cut to length as needed. Made in the USA.

Features:
  • Motor Type: Air Motor
  • Drive Type: Direct Drive
  • RPM: 1750
  • Impeller Type: Propeller
  • Max Shaft Length Inches: 40
  • Max Specific Gravity: 1.1
  • Max Viscosity: 100cP
  • Max Mixing Volume: 275 Gallons


PRICE
$2,949.00

1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length30 in
Width15 in
Height15 in
Weight49 lbs
Blade Diameter5 in

Product Details

TypeHeavy-Duty Tote Mixer
Horsepower1 HP
For Use With275 Gallon Composite Totes
Capacity1100 qt
MaterialStainless Steel
Manufacturers Part NumberBD100H40-1-FC-340-1P5.0-1
BrandBrawn Mixer

Compliance & Certifications

CertificationsCSA, UL
