The Honeywell VR8200A2132 24 Vac Dual Standing Pilot Gas Valve is for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh. The VR8200A2132 comes with 1/2 in. x 1/2 in. inletoutlet, standard opening and 3.5 in. wc pressure regulator setting. ÂControls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment. ÂCompact size. ÂProvide two automatic valves. ÂSolenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends. ÂDiaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. ÂMeet codes requiring dual safety shutoff. ÂNatural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. ÂLITE-RITE (OFF-PILOT-ON) lighting sequence. ÂAll adjustments, wiring connections and pilot outlet are accessible from top of control. ÂAdjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. ÂCompatible with ECO connector.

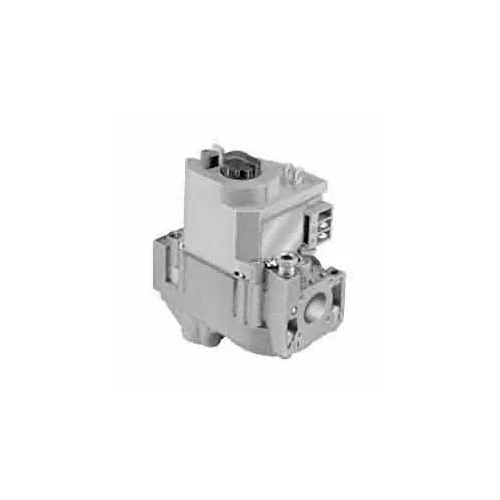

Honeywell VR8200A2132 24 Vac Dual Standing Pilot Gas Valve
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$159.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Width | 4-1/16 in |
| Depth | 3-1/4 in |
| Height | 5-3/16 in |
| Weight | 2 lbs |
| Outlet Size | 1/2 in |
| Inlet Size | 1/2 in |
Product Details
| Type | Straight-Through |
| Opening Type | Standard |
| For Use With | Gas-fired/Intermittent Pilot Appliances |
| BTU/hr Max | 130000 |
| BTU/hr Min | 20000 |
| Ignition Type | Standing Pilot |
| Description | Dual Standing Pilot Gas Valve |
| Max Operating Pressure | 1/2 psi |
| Manufacturers Part Number | VR8200A2132 |
| Fuel Type | Natural Gas |
| Brand | Honeywell |
Warranty
| Warranty | 1 yr |
