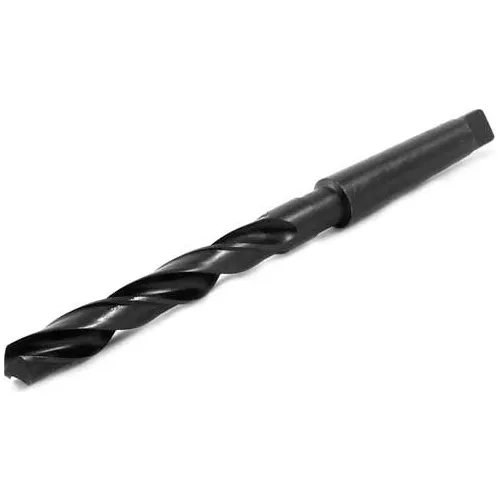

HSS Import T Shank, GP Drills 118°, 16.0mm Diameter x 218mm OAL,# 2 MT

High Speed Steel TMX Interchangeable Pilot Counterbore with Taper Shank. HSS TMX Interchangeable Pilot Counterbore, Taper Shank, 5 Flute, 1-9/16" cutting diameter x # 4 MT shank x 5-7/8" shank length x 8-1/8" OAL with 7/16" pilot hole diameter for pilots 1/2" to 1-1/2". For counterboring and spotfacing - interchangeable pilots provide the advantage of one counterbore size can be used for a number of pilot hole diameters

High Speed Steel TMX Hand Reamers are designed for applications where hand reaming will product an accurate hole diameter. HSS TMX Hand Reamer, straight flute, straight shank - DIN 206/A, 16mm cutting diameter, 8 Flutes: 87 mm flute length x 175 mm overall length (OAL). Straight Flute, Right Hand Cut Entering taper for ease of entry Shanks have a square end for holding in a tap wrench or vise

High Speed Steel TMX Taper Shank Core Drill. HSS Taper Shank 4 Flute TMX Core Drill, 1-1/16" cutting diameter x 6-5/8" flute length x 11-1/4" overall length (OAL) with # 3 MT shank. Core drills can enlarge a hole up to 40% of it's original diameter

High Speed Steel TMX Taper Shank Core Drill. HSS Taper Shank 4 Flute TMX Core Drill, 1-17/32" cutting diameter x 9-3/8" flute length x 16-3/8" overall length (OAL) with # 5 MT shank. Core drills can enlarge a hole up to 40% of it's original diameter

Applications: Used to enlarge existing holes Features: Standard 3 flute design Right hand (clockwise rotation) cutting direction Since chip loads are spread over a greater number of cutting edges, reduce regular drill speed 25% and double feed rate Normal spiral - helical flutes Standard shanks that correspond to the drill diameter Normal length drills have flutes proportional to length
