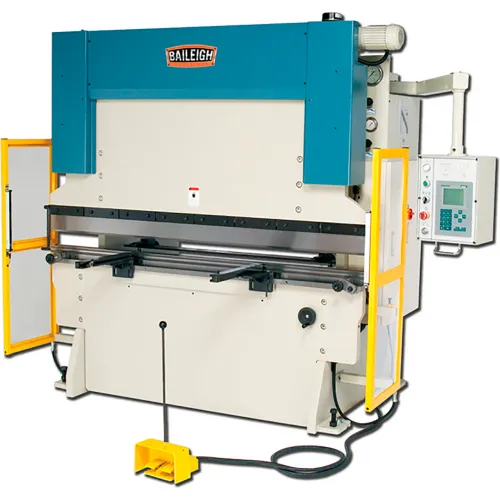

Heavy Construction for Accuracy and Safety:
- Thick electrowelded plate steel framework gives this machine the structural strength to deliver accurate results, day in, day out, for years
- Weighs 8,800 lbs., so this press brake won't buckle under pressure even at maximum capacity
- Includes front material rests
- 6-sensor light curtain keeps you safe by preventing the press brake from running if anyone is standing too close
- Inside lighting helps you see what you're bending
- You can measure and adjust the pressure for your application
- Mechanical stops inside hydraulic cylinders ensure an accurate bend angle
- Digital encoders control the beam depth and back gauge positions
- Separate digital readouts (DROs) show the stroke and back gauge positions, so you can make precise repeat bends
- Parallel hydraulic mechanism synchronizes both sides, so that the machine stays true and the motions are balanced through each stroke
- Top beam travels up and down using several 3-axis bearings coupled to a hardened rail system
- Touchscreen Delem controller holds 100 programs with up to 25 bends per program
- Programmable system is easy to learn. You could teach someone how to to use this machine in around 15 minutes
- Pendant control box conveniently swings away from the machine
- You can program the back gauge, moved by a servo motor with an encoder, through the Delem console
- Finite manual adjustments also allow you to raise or lower the back gauge
- Hydraulic auto-crowning creates consistent bends across the maximum width of the machine and prevents underbending in the middle
- This industrial press brake ships fully assembled and loaded with a set of multi-Vee tooling
- Covered by a 1-year parts warranty
- You can count on lifetime technical support by phone from our team of customer service engineers, all with hands-on machine experience
- Produces up to 90 tons of hydraulic pressure
- Gap Between Housings is 61"
- Bends sheet metal across its full 78" width
- 2 industrial-grade hydraulic cylinders raise and lower top beam through a servo motor
