AmScope ZM-1TW3-FOD-M 2X-225X Trinocular Stereo Zoom Microscope with Large Stand & 1.3MP Camera

AmScope ZM-1TW3-FOD-M 2X-225X Trinocular Stereo Zoom Microscope with Large Stand & 1.3MP Camera

Item #: WBM00189

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial OTG Visitor Safety Glasses, Clear Frame, 1 Each - Pkg Qty 12

    $15.00

  • Unisex Lab Coat - White L

    $22.25

$2,257.49 up to 33% OFF

Price: $1,511.00

$251.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,511.00 or save 5% on purchase.

Quantity

Customers Also Viewed

AmScope ZM-1TW3-FOD-M 2X-225X Trinocular Stereo Zoom Microscope with Large Stand & 1.3MP Camera

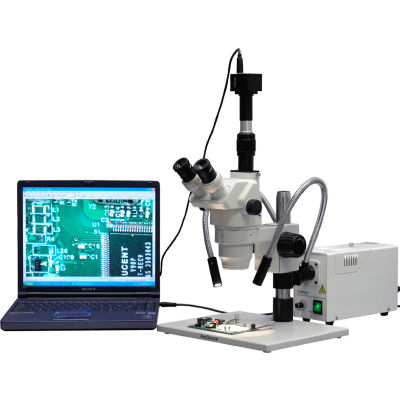

This is a turnkey package for the ultimate stereo microscopy system with extreme widefield optics and a contemporary design. It includes a 2X-225X trinocular stereo zoom head, an extra large pillar stand, a fiber optic dual gooseneck illuminator and a 1.3MP digital camera. Built with 30mm extreme widefield optical lenses the microscope offers crystal clear sharp images, extremely large magnification zoom range (112:1), and a large working distance (14"). The fiber optic dual gooseneck illuminator provides 150 Watts of bright, even and cool illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. This microscopy unit is perfect for researchers, gemologists, manufacturing engineers, and anyone in semiconductor and electronics industries.

Features:
  • A great turnkey package of an ultimate inspection microscopy system with a digital camera
  • Extremely large zoom magnification range of 2X-225X
  • 22mm extreme widefield eyepieces
  • Trinocular head with 45 degree inclined eye tubes
  • Extremely high resolution with great flatness and contrast
  • Super sharp and clear images
  • 30mm extreme widefield high-eyepoint eyepieces with 22mm field of view
  • Sharp stereo erect images over a wide field of view
  • Crystal clear original true color microscope images
  • Dual eye tubes with adjustable diopters
  • Extremely large working distance of 14" (350mm)
  • Sturdy super large stand with a stain resistant enamel finish
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Fiber optic dual gooseneck light
  • 150W variable-intensity light source
  • High intensity 21V, 150W halogen bulb
  • Perfect even Quartz low heat halogen illumination
  • Forced air cooling system
  • 3200 degrees Kelvin lamp color temperature
  • Rubber eye guards included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
Specifications:
  • Head: 360 degree rotatable 45 degree inclined trinocular
  • Eyepiece: 30mm super widefield high-eyepoint WH10X/22MM & WH25X/9MM
  • Zoom Range: 0.2X-22.5X
  • Diopter Adjustment: +/- 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 14" (350mm)
  • Field of View: 5-3/4" (145mm) in diameter
  • Stand: 12.5"x10"x0.75" (320mm x 260mm x 20mm) solid cast steel base
  • Light Source: 21V, 150W halogen bulb
  • Power Supply: 110V (220V version available)
  • Accessories: paired eye-caps
Camera Specifications:
  • Sensor: Aptina MT9M111
  • Sensor Type: CMOS
  • Sensor Size: 4.6x3.7mm
  • Pixel Size: 3.6
  • Resolution: 1.3MP
  • Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Product Specifications

  • BRANDAmScope
  • MANUFACTURER PART NUMBERZM-1TW3-FOD-M
  • DESCRIPTIONTrinocular Stereo Zoom Microscope with Large Stand & 1.3MP Camera
  • MATERIALMetal
  • COLORWhite
  • SENSORCMOS
  • MAGNIFICATION RANGE2X-225X
  • FIELD VIEWExtreme Widefield
  • HEAD TYPETrinocular
  • OBJECTIVE0.67-4.5X
  • EYEPIECE MAGNIFICATION10X, 25X
  • EYEPIECE30mm
  • CAMERA PIXEL1.3MP
  • LIGHT SOURCEHalogen, Fiber Optic
  • LIGHT POWER150W
  • NUMBER OF LIGHT BULBS2
  • POWER SUPPLY110V
  • TYPEStereo Microscope
  • REDUCTION LENS0.3X
  • OPERATING SYSTEMWindows XP/Vista/7/8/10, Mac OSX, Linux
  • STAND TYPETable Stand: Pillar
  • PACKAGE QUANTITY1
  • LIMITED WARRANTY5 Years
  • APPLICATIONIndustrial Inspection, Coin/Stamp, Engraving, Laboratory, Teaching/Training
  • ACCESSORY TYPECamera
