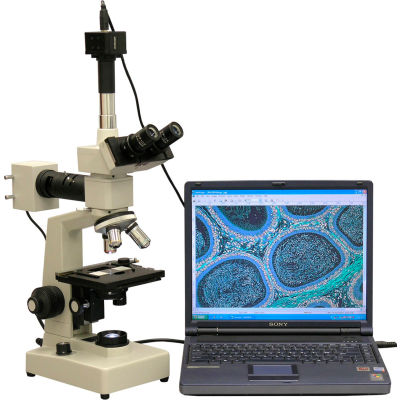

AmScope ME300TZB-2L-M 40X-2000X Two Light Metallurgical Microscope with 1.3MP Digital Camera

AmScope ME300TZB-2L-M 40X-2000X Two Light Metallurgical Microscope with 1.3MP Digital Camera

Item #: WBM00229

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Frequently Purchased Together

  • Global Industrial OTG Visitor Safety Glasses, Clear Frame, 1 Each - Pkg Qty 12

    $15.00

  • Unisex Lab Coat - White L

    $22.25

$2,029.99 up to 50% OFF

Price: $1,014.99

$169.16 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,014.99 or save 5% on purchase.

Quantity

Customers Also Viewed

AmScope ME300TZB-2L-M 40X-2000X Two Light Metallurgical Microscope with 1.3MP Digital Camera

Unlike most other metallurgical microscopes, this model comes with both reflected (EPI) and transmitted illuminations as well as a 1.3MP true color digital image camera. It is an ideal instrument for metallurgical, mineral and crystal identification.

Features:
  • High quality trinocular professional upright metallurgical metallographic microscope with reflected and transmitted illumination system
  • Perfect for detail examination and micro-analysis of surface structures of metallic materials
  • Excellent for quality control in industrial and research applications including metallurgical labs, silicon wafer inspection, and foundries
  • Eight total magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X and 2000X
  • 30° inclined 360° rotatable sliding trinocular head
  • Fully coated optical system with high resolution
  • 23mm universal/standard photo port
  • Adjustable interpupillary distance
  • Adjustable diopters on both eye tubes
  • Four superior quality PLAN DIN objectives, 4X, 10X, 40X (spring), and 100X (spring)
  • Two pairs of widefield eyepieces, 10X and 20X
  • Advanced EPI-illumination design offers excellent halogen illumination and optimal image clarity
  • Epi-Illumination has independent filter holders, aperture/field diaphragms and diaphragm alignment controls
  • Brightfield transmitted lighting system has 1.25 (N.A.) Abbe substage condenser, iris diaphragm and swing-out filter holder
  • Yellow, blue, green, and frosted filters included
  • Coaxial coarse and fine focusing system
  • Dual side focusing controls
  • Focusing tension control mechanism
  • Locking mechanism for controlling coarse focusing range and protecting objectives and specimens
  • Large graduated mechanical stage with stain resistant finish
  • Low position coaxial X-Y stage traveling controls
  • Solid metal frame construction with stain resistant enamel finish
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical parts
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
Specifications:
  • Nosepiece: quadruple
  • Focusing Range: 1-9/16" (40mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3" (55 - 75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: 30° inclined trinocular
  • Camera/Video Trinocular Port: 23mm universal/standard photo tube
  • Eyepieces: WF10X (18mm field of view), Widefield 20X (11mm)
  • Objectives: PL 4X (0.1 NA), 10X (0.25 NA), 40X (spring, 0.65 NA), 100X (spring, 1.25NA)
  • Stage Dimensions: 5-1/8"x 4-13/16" (130x122mm)
  • Stage Traveling Range: 1-3/16"x2-3/4" (30x70mm)
  • Vernier Division: 0.004" (0.1mm)
  • Illumination: halogen
  • Power Supply: 110V (Adapter for 220V version available), CE certified
Camera Specifications:
  • Sensor: Aptina MT9M111
  • Sensor Type: CMOS
  • Sensor Size: 4.6x3.7mm
  • Pixel Size: 3.6
  • Resolution: 1.3MP
  • Frame Rate: 15@1280x1024, 26@640x512, 50@320x256
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Product Specifications

  • BRANDAmScope
  • MANUFACTURER PART NUMBERME300TZB-2L-M
  • DESCRIPTIONTwo Light Metallurgical Microscope with 1.3MP Digital Camera
  • MATERIALMetal
  • COLORWhite
  • SENSORCMOS
  • MAGNIFICATION RANGE40X-2000X
  • OPTICSPlan
  • FIELD VIEWWidefield
  • HEAD TYPETrinocular
  • OBJECTIVE4X, 10X, 40X, 100X
  • EYEPIECE MAGNIFICATION10X, 20X
  • EYEPIECE23mm
  • CAMERA PIXEL1.3MP
  • LIGHT SOURCEHalogen
  • LIGHT POWER20W, 30W
  • NUMBER OF LIGHT BULBS2
  • STAGETwo-layer Mechanical Stage
  • STAGE DIV1.00mm
  • CONDENSERAbbe-Rack & Pinion with Diaphragm
  • CONDENSER TYPEBrightfield
  • CONDENSER OPTICSNA 1.25
  • IRISWith Iris
  • POWER SUPPLY110V
  • TYPESpecial Microscope
  • REDUCTION LENS0.3X
  • OPERATING SYSTEMWindows XP/Vista/7/8/10, Mac OSX, Linux
  • PACKAGE QUANTITY1
  • LIMITED WARRANTY5 Years
  • APPLICATIONIndustrial Inspection, Mineralogy, Metallurgy
