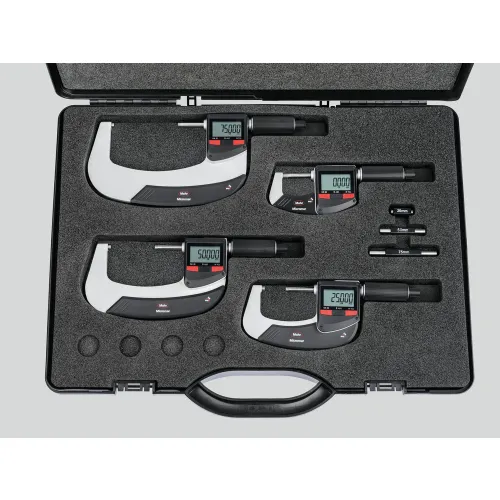

Mahr Micromar 40 Ewri Wireless Digital Micrometer Set with Four Micrometers, 0" - 4" Range

iGAGING® IP54 LARGE DISPLAY DIGITAL MICROMETER Features: IP54 protective rating: Moisture and dust resistance Range: 0-1"/25mm Accuracy: 0.00015"/0.003mm X-Large LCD display Criterion A for ESD Inch/Metric conversion Resolution:0.00005"/0.001 mm Absolute/Incremental setting DATA output button for easy operation (Data output kit needed) All metal ratchet stop SPC/USB data output Battery: 3V CR2032 included Supplied in protective case

The Mahr Micromar 40 EWR (4157011) combines precision measurement with IP65 dust and water protection. Range of 0-1"/25mm with 0.001mm/0.00005" resolution and 2μm accuracy. MarConnect bidirectional data interface supports USB and Digimatic output for SPC integration. High-contrast display with reference system retains zero position. Carbide-tipped spindle and anvil ensure durability. Quick drive with integrated ratchet provides consistent force. Heat-insulated frame minimizes thermal errors. Includes battery, test certificate, and case.

Features: EZ to read X-large LCD display SPC data output port Cert of inspection Premium quality by iGAGING Crisp click sound for ratchet stop IP54 water and dust resistance ISO 9001 certified manufacture Data output button for EZ control Anodized aluminum thimble for long lasting performance Carbide measuring surface

The Mahr Micromar 40 EWRi-L (4157121) offers wireless capability with non-rotating spindle technology. Range of 1-2"/25-50mm with 0.001mm/0.00005" resolution and 2μm accuracy. Quick drive sliding spindle enables rapid positioning without surface damage. IP65-rated for production floor use. Perfect for measuring thin foils and sensitive machined surfaces. Integrated transmitter eliminates cables. MarCom software integration for SPC workflows. Includes setting standard, battery, test certificate, and case. Features: Avoiding workpiece damage: The non-rotating spindle has a touching touch, ...

The Mahr Micromar 40 EWRi-K (4157140) combines disc anvil with pointed spindle for measuring wire crimps, small features, and hard-to-access dimensions. Range of 0-20mm/0-0.8" with 0.001mm/0.00005" resolution. IP65 dust and water protection. Integrated wireless transmission for seamless SPC integration via MarCom software. High-contrast display with reference system. Quick drive with ratchet for consistent measuring force. Ideal for electrical connector and wire harness inspection. Includes test certificate and case. Features: Measuring surfaces: Anvil with narrow web, pointed spindle ...
