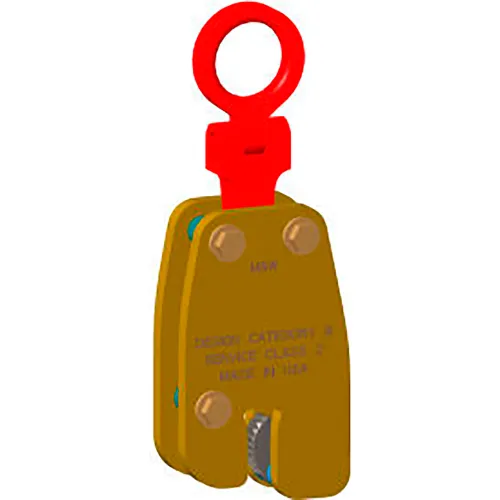

M&W Plate Clamp 1.5-3" Hinged - 11,000 Lb. Capacity

For vertical and horizontal lifting and transportation of a large variety of steel structures Features: Special universal design ensures multi-purpose application of lifting steel structures Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied Lightweight design for easy handling Tough quality heavy duty drop forged body Forged alloy components, where required 1 TSCC-W Screw Clamp with 2.00-3.93 inch jaw opening & 2200 lbs ...

Heavy-duty plate clamps are designed to vertically lift and turn plate material. These lifting clamps include a pivoting bail for versatile, smooth operation and automatic serrated hardened steel pads and cams. Clamps feature a drop-forged steel case for maximum strength. Meets ASME B30.20 specifications.Note: Not designed to use on stainless steel or aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).

For vertical lifting, transporting and turning of all steel plates with a hardness of max. 55 HRC. Please ask for special specifications. Features: Equipped with an extra hardened pivot and cam Cam is colored green for easy identification Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered Clamp is locked in closed as well as open position Lightweight design for easy handling Tough quality heavy duty welded shell body 3 TSEU-H Hard Vertical Plate Lifting Clamp with 0-1.37 inch jaw opening & 6600 lbs Working ...

Features: Non-welded Construction. No Minimum Load Camming Stationary Jaw Automatically Returns to Preload Position Self Locking Jaw Closed Mechanism Self Locking Jaw Open Mechanism 0 – 180 Degree Turning Permissible Clamp can be mounted to the work piece without the need for the operator to put hands in the fall path of the work piece Designed with a 5 –1 Design Factor Criteria ASME B30.20 Operation Compliant ASME B30.BTH -1 Design Compliant Working Load Limit (WLL) Clearly and Legibly Marked on the Clamp Serial Number Clearly and Legibly Marked on the Clamp Materials of Manufacture ...

For vertical lifting, handling and transporting of Holland Profile (HP) shipbuilding structures from all positions. Features: With articulated lifting shackle for universal lifting flexibility at various angles The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below Standard with 2 pivots for extra powerful clamping force Always equipped with a safety mechanism, ensuring the clamp does not slip when lifting force ...
