Sloan

Model # :WB236681

MPN #: 3012600

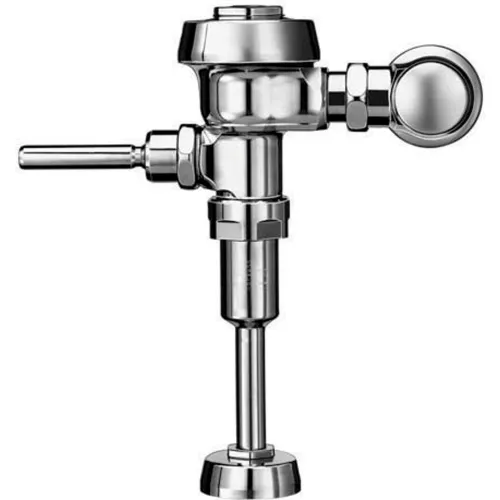

Royal® Model 186 Water Saver Flushometer

Product Description
Royal® Model 186 Water Saver (1.5 gpf/5.7 Lpf) Flushometer

Exposed Urinal Flushometer, for 3/4" top spud urinals. Quiet, Exposed, Diaphragm Type, Chrome Plated Urinal Flushometer with the following features:

  • PERMEX™ Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Screwdriver Bak-Chek® Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Spud Coupling and Flange for 3/4" Top Spud
  • Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID™ Technology
  • Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX™ Rubber Compound for Chloramine Resistance
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources Wind Energy
  • PRICE
    $191.75

    Min. purchase quantity is 2
    2
    2
    Ships in 5 Business Days
    Add or Change Zip Code(s)
    Easy online or call-in returns. Read return policy

    Weights & Dimensions

    Weight7 lbs
    Spud Size3/4 in
    Tailpiece Size3/4 in

    Product Details

    Gallons per Flush1.6 gal/flush
    TypeUrinal
    ColorSilver
    SeriesRoyal 186
    Liters per Flush6
    For Use WithUrinal
    StyleWater Saver
    MaterialSemi-Red Brass, PERMEX, Plastic, Rubber., Stainless Steel
    Flush TypeManual
    Manufacturers Part Number3012600
    Installation TypeExposed Urinal
    Spud PlacementTop
    BrandSloan

    Warranty

    Warranty36 mo

    Compliance & Certifications

    ADA CompliantYes
