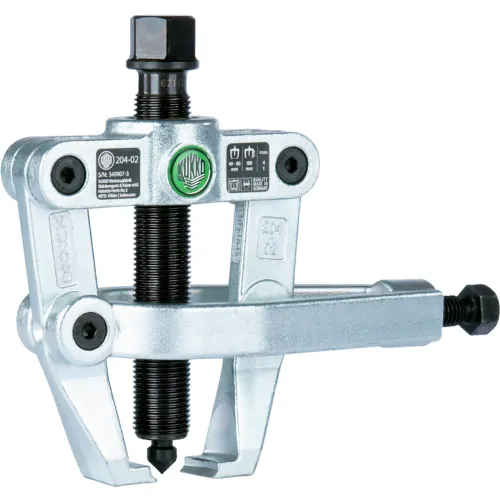

The 2-arm bearing puller "Cobra" with side clamp and separating claw is used for pulling off flush-fitting ball bearings, bearing rings and workpieces. The special claw shape of the extractor legs grips under the part to be extracted when the clamp is tightened and releases it before the actual extraction process. At the same time, the clamp increases the contact pressure of the puller legs many times over and thus prevents the puller from slipping off. When the clamp is tightened, the sharp claws of the puller legs grip under the part to be pulled off and release it even before the actual pulling process. The free-moving pin on the T-handle guarantees comfortable, one-handed tightening of the spindle in the tightest of spaces.
Range of Application: For extracting particularly tightly fitted ball bearings, bearing rings and workpieces
Benefits:
- Lateral clamp ensures that the puller legs are pressed particularly firmly against the part to be pulled off
- Slim design of the legs makes it possible to reach places that are difficult to access
- 2-fold application of force from above and sideways guarantees 100% secure grip
- Anti-slip device on the spindle head for safe working with spanners
- Spindle run-out to protect the thread
- Apply the puller leg to the part to be pulled off from the outside
- Push the claws under the part
- Pull the spindle manually to fix it
- Move the hexagon on the spindle head with a ratchet or a combination spanner until the component is loosened
- 204-3-140-P_2 Pulling hook (pair)
- 204-3-T_Traverse
- 204301_Clamping clamp complete
- Clamping depth of external puller [mm]: 100 mm
- Width across flats [mm]: 22 mm
- Span outside pull-off (min.) [mm]: 22 mm
- Span outside pull-off (max.) [mm]: 90 mm
- Hook root thickness at the tip (claw thickness K) [mm]: 3 mm
- Hook base width (claw width J) [mm]: 24 mm
- Hook base depth usable (claw depth usable O) [mm]: 7 mm
- Total hook root depth (total claw depth H) [mm]: 20 mm
- Total claw thickness (L+1mm) [mm]: (claw distance to base surface): 6 mm
- Max. tractive force [t]: 4
- Max. tensile force [kN]: 40 kN
