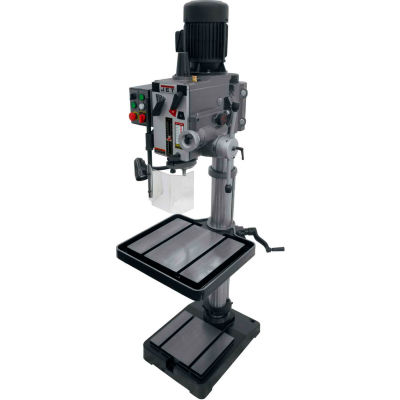

Jet 354026 GHD-20PFT Geared Head Drill Press W/Tapping, 230V, 3-Phase

Jet 354026 GHD-20PFT Geared Head Drill Press W/Tapping, 230V, 3-Phase

Item #: WBB0230721

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$8,019.66 up to 19% OFF

Price: $6,529.00

$1,088.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Jet 354026 GHD-20PFT Geared Head Drill Press W/Tapping, 230V, 3-Phase

Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty.

Features:
  • 20 Geared Head Drilling & Tapping Presses
  • Heavy-duty design allows a variety of precision drilling and tapping applications
  • Easy to read internal depth gauge
  • Three power down feeds
  • Calibrated fine down feed built-in
  • Built-in spindle lock
  • Head tilts left or right
  • Easy accessible table raiser
  • Large production table and T-slotted base
  • Integrated tapping and reversing controls
  • T-slotted worktable
  • Drill chuck arbor
  • Draw bar
  • TEFC Motor


Weights & Dimensions

  • Tapping Capacity Cast Iron 15/16 in
  • Quill Travel 4-1/2 in
  • Spindle Travel 4-1/2 Manual in
  • Spindle Distance To Table (Max) 30-1/2 in
  • Quill Diameter 3 in
  • Table Size (L x W) 21-3/4 X 19-1/2 in
  • Column Diameter 4-1/2 in
  • T-Slots Number And Size 2 & 5/8 in
  • Tapping Capacity Mild Steel 15/16 in
  • Drills to Center of Circle 20 in
  • Swing 20 in
  • T-Slots Centers 6-1/4 in
  • Spindle Distance To Base 44-5/16 in
  • Size 20 in
  • Distance Spindle To Column 10 in

Product Details

  • Jet Promo 12/6/19 to 12/26/19
  • Motor Voltage 230V v
  • Spindle Taper MT-3
  • Drilling Capacity Mild Steel 1-1/4
  • Range of Spindle Speeds Low - 120, 260, 460, 900, 1600, 3000; High - 60, 130, 230, 450, 800, 1500 rpm
  • Motor Horsepower 2 HP HP
  • Style Geared Head
  • Work Table Weight Capacity 275 lbs
  • Drilling Capacity Cast Iron 1-1/2
  • Number of Spindle Speeds 12
  • Motor 2 HP, 230V, 3 Ph, 2 Speed
  • Phase 3 Ph
  • Quill Feed Manual
  • Brand JET
  • Warranty 2-Year Warranty yr
  • Manufacturers Part Number 354026
