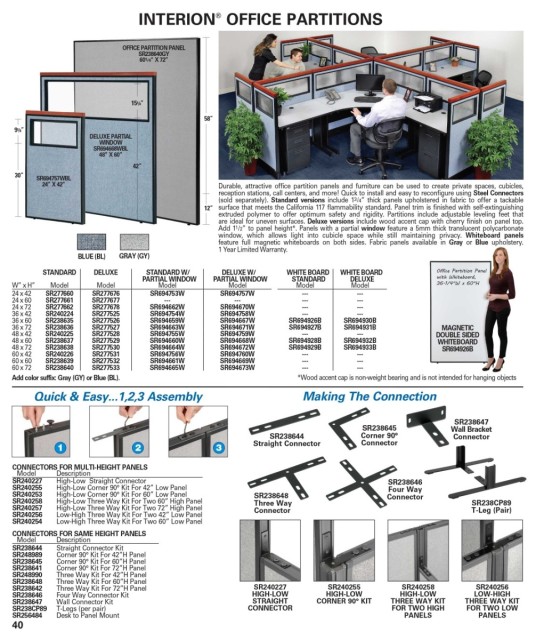

INTERION OFFICE PARTITIONS
®

OFFICE PARTITION PANEL
SG238640GY
60 1 /4” X 72”

15 1 /4”
58”
9 1 /4”
DELUXE PARTIAL
WINDOW
SG694668WBL
48” X 60”
42”
30”
SG694757WBL
24” X 42” Durable, attractive office partition panels and furniture can be used to create private spaces, cubicles, reception
stations, call centers, and more! Quick to install and easy to reconfigure using Steel Connectors (sold separately).
Standard versions include 1 3 /4” thick panels upholstered in fabric to offer a tackable surface that meets the California
12” 117 flammability standard. Panel trim is finished with self-extinguishing extruded polymer to offer optimum safety
and rigidity. Partitions include adjustable leveling feet that are ideal for uneven surfaces. Deluxe versions include
wood accent cap with cherry finish on panel top. Add 1 1 /2” to panel height*. Panels with a partial window feature a
5mm thick translucent polycarbonate window, which allows light into cubicle space while still maintaining privacy.
Whiteboard panels feature full magnetic whiteboards on both sides. Fabric panels available in Gray or Blue upholstery.
1 Year Limited Warranty.
BLUE (BL) GRAY (GY)
STANDARD DELUXE STANDARD W/ DELUXE W/ WHITE BOARD WHITE BOARD
PARTIAL WINDOW PARTIAL WINDOW STANDARD DELUXE
W” x H” Model Price Model Price Model Price Model Price Model Price Model Price
24 x 42 SG277660 $102.00 SG277676 $115.00 SG694753W $119.00 SG694757W $133.00 --- --- --- ---
24 x 60 SG277661 130.00 SG277677 143.00 --- --- --- --- --- --- --- ---
24 x 72 SG277662 159.00 SG277678 174.00 SG694662W 178.00 SG694670W 192.00 --- --- --- ---
36 x 42 SG240224 149.00 SG277525 169.00 SG694754W 163.00 SG694758W 183.00 --- --- --- ---
36 x 60 SG238635 166.00 SG277526 186.00 SG694659W 204.00 SG694667W 225.00 SG694926B 226.00 SG694930B 245.00
36 x 72 SG238636 207.00 SG277527 229.00 SG694663W 252.00 SG694671W 272.00 SG694927B 282.00 SG694931B 259.00 MAGNETIC
48 x 42 SG240225 173.00 SG277528 195.00 SG694755W 248.00 SG694759W 267.00 --- --- --- --- DOUBLE SIDED
48 x 60 SG238637 194.00 SG277529 218.00 SG694660W 251.00 SG694668W 272.00 SG694928B 272.00 SG694932B 295.00 WHITEBOARD
48 x 72 SG238638 221.00 SG277530 244.00 SG694664W 279.00 SG694672W 299.00 SG694929B 321.00 SG694933B 345.00 SG694926B
60 x 42 SG240226 188.00 SG277531 227.00 SG694756W 228.00 SG694760W 267.00 --- --- --- ---
60 x 60 SG238639 226.00 SG277532 263.00 SG694661W 299.00 SG694669W 336.00 --- --- --- ---
60 x 72 SG238640 258.00 SG277533 294.00 SG694665W 332.00 SG694673W 370.00 --- --- --- ---
Add color suffix: Gray (GY) or Blue (BL). *Wood accent cap is non-weight bearing and is not intended for hanging objects
Quick & Easy...1,2,3 Assembly Making The Connection
SG238647
SG238645 Wall Bracket
SG238644 Corner 90° Connector
1 2 3 41 2 3 41 2 3 4 Straight Connector Connector
CONNECTORS FOR MULTI-HEIGHT PANELS Price
Model Description Each
SG240227 High-Low Straight Connector $23.00 SG238646
SG240255 High-Low Corner 90° Kit For 42” Low Panel 45.00 Four Way
SG240253 High-Low Corner 90° Kit For 60” Low Panel 45.00 SG238648 Connector
SG240258 High-Low Three Way Kit For Two 60” High Panel 45.00 Three Way SG238CP89
SG240257 High-Low Three Way Kit For Two 72” High Panel 45.00 Connector T-Leg (Pair)
SG240256 Low-High Three Way Kit For Two 42” Low Panel 45.00
SG240254 Low-High Three Way Kit For Two 60” Low Panel 45.00
CONNECTORS FOR SAME HEIGHT PANELS Price
Model Description Each
SG238644 Straight Connector Kit $26.00
SG248989 Corner 90° Kit For 42”H Panel 48.00
SG238645 Corner 90° Kit For 60”H Panel 45.00
SG238641 Corner 90° Kit For 72”H Panel 48.00
SG248990 Three Way Kit For 42”H Panel 48.00
SG238648 Three Way Kit For 60”H Panel 48.00
SG238642 Three Way Kit For 72”H Panel 48.00 SG240227 SG240255 SG240258 SG240256
SG238646 Four Way Connector Kit 30.00 HIGH-LOW HIGH-LOW HIGH-LOW LOW-HIGH
SG238647 Wall Connector Kit 12.00 STRAIGHT CORNER 90° KIT THREE WAY KIT THREE WAY KIT
SG238CP89 T-Legs (per pair) 66.00 CONNECTOR FOR TWO HIGH FOR TWO LOW
SG256484 Desk to Panel Mount 10.00 PANELS PANELS
