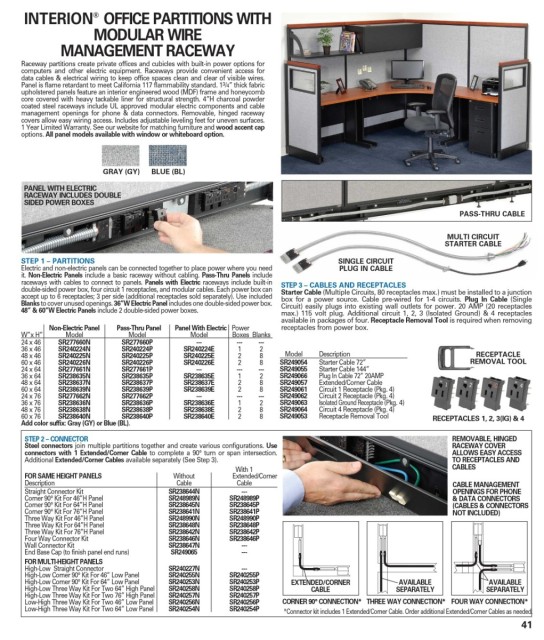

INTERION OFFICE PARTITIONS WITH
®
MODULAR WIRE
MANAGEMENT RACEWAY
Raceway partitions create private offices and cubicles with built-in power options for
computers and other electric equipment. Raceways provide convenient access for
data cables & electrical wiring to keep office spaces clean and clear of visible wires.
Panel is flame retardant to meet California 117 flammability standard. 1 3 /4” thick fabric
upholstered panels feature an interior engineered wood (MDF) frame and honeycomb
core covered with heavy tackable liner for structural strength. 4”H charcoal powder
coated steel raceways include UL approved modular electric components and cable
management openings for phone & data connectors. Removable, hinged raceway
covers allow easy wiring access. Includes adjustable leveling feet for uneven surfaces.
1 Year Limited Warranty. See our website for matching furniture and wood accent cap
options. All panel models available with window or whiteboard option.

GRAY (GY) BLUE (BL)
PANEL WITH ELECTRIC
RACEWAY INCLUDES DOUBLE
SIDED POWER BOXES
PASS-THRU CABLE

MULTI CIRCUIT
STARTER CABLE
STEP 1 – PARTITIONS SINGLE CIRCUIT
Electric and non-electric panels can be connected together to place power where you need PLUG IN CABLE
it. Non-Electric Panels include a basic raceway without cabling. Pass-Thru Panels include
raceways with cables to connect to panels. Panels with Electric raceways include built-in STEP 3 – CABLES AND RECEPTACLES
double-sided power box, four circuit 1 receptacles, and modular cables. Each power box can Starter Cable (Multiple Circuits, 80 receptacles max.) must be installed to a junction
accept up to 6 receptacles; 3 per side (additional receptacles sold separately). Use included box for a power source. Cable pre-wired for 1-4 circuits. Plug In Cable (Single
Blanks to cover unused openings. 36”W Electric Panel includes one double-sided power box. Circuit) easily plugs into existing wall outlets for power. 20 AMP (20 receptacles
48” & 60”W Electric Panels include 2 double-sided power boxes. max.) 115 volt plug. Additional circuit 1, 2, 3 (Isolated Ground) & 4 receptacles
available in packages of four. Receptacle Removal Tool is required when removing
Non-Electric Panel Pass-Thru Panel Panel With Electric Power receptacles from power box.
W”x H” Model Price Model Price Model Price Boxes Blanks
24 x 46 SG277660N $172.00 SG277660P $215.00 --- --- --- ---
36 x 46 SG240224N 224.00 SG240224P 279.00 SG240224E $276.00 1 2
48 x 46 SG240225N 270.00 SG240225P 329.00 SG240225E 399.00 2 8 Model Description Price Ea. RECEPTACLE
60 x 46 SG240226N 316.00 SG240226P 389.00 SG240226E 487.00 2 8 SG249054 Starter Cable 72” $79.00 REMOVAL TOOL
24 x 64 SG277661N 202.00 SG277661P 243.00 --- --- --- --- SG249055 Starter Cable 144” 114.00
36 x 64 SG238635N 243.00 SG238635P 297.00 SG238635E 295.00 1 2 SG249066 Plug In Cable 72” 20AMP 112.00
48 x 64 SG238637N 299.00 SG238637P 359.00 SG238637E 426.00 2 8 SG249057 Extended/Corner Cable 57.00
60 x 64 SG238639N 355.00 SG238639P 428.00 SG238639E 511.00 2 8 SG249061 Circuit 1 Receptacle (Pkg. 4) 27.00
24 x 76 SG277662N 228.00 SG277662P 273.00 --- --- --- --- SG249062 Circuit 2 Receptacle (Pkg. 4) 27.00
36 x 76 SG238636N 307.00 SG238636P 341.00 SG238636E 344.00 1 2 SG249063 Isolated Ground Receptacle (Pkg. 4) 27.00
48 x 76 SG238638N 320.00 SG238638P 382.00 SG238638E 465.00 2 8 SG249064 Circuit 4 Receptacle (Pkg. 4) 27.00
60 x 76 SG238640N 386.00 SG238640P 460.00 SG238640E 535.00 2 8 SG249053 Receptacle Removal Tool 14.00 RECEPTACLES 1, 2, 3(IG) & 4
Add color suffix: Gray (GY) or Blue (BL).
STEP 2 – CONNECTOR REMOVABLE, HINGED
Steel connectors join multiple partitions together and create various configurations. Use RACEWAY COVER
connectors with 1 Extended/Corner Cable to complete a 90° turn or span intersection. ALLOWS EASY ACCESS
Additional Extended/Corner Cables available separately (See Step 3). TO RECEPTACLES AND
With 1 CABLES
FOR SAME HEIGHT PANELS Without Price Extended/Corner Price
Description Cable Each Cable Each CABLE MANAGEMENT
Straight Connector Kit SG238644N $26.00 --- --- OPENINGS FOR PHONE
Corner 90° Kit For 46”H Panel SG248989N 48.00 SG248989P $91.00 & DATA CONNECTORS
Corner 90° Kit For 64”H Panel SG238645N 48.00 SG238645P 91.00 (CABLES & CONNECTORS
Corner 90° Kit For 76”H Panel SG238641N 48.00 SG238641P 91.00 NOT INCLUDED)
Three Way Kit For 46”H Panel SG248990N 46.00 SG248990P 90.00
Three Way Kit For 64”H Panel SG238648N 46.00 SG238648P 90.00
Three Way Kit For 76”H Panel SG238642N 46.00 SG238642P 91.00
Four Way Connector Kit SG238646N 30.00 SG238646P 79.00
Wall Connector Kit SG238647N 12.00 --- ---
End Base Cap (to finish panel end runs) SG249065 19.00 --- ---
FOR MULTI-HEIGHT PANELS
High-Low Straight Connector SG240227N 22.00 --- ---
High-Low Corner 90° Kit For 46” Low Panel SG240255N 45.00 SG240255P 90.00
High-Low Corner 90° Kit For 64” Low Panel SG240253N 45.00 SG240253P 90.00 EXTENDED/CORNER AVAILABLE AVAILABLE
High-Low Three Way Kit For Two 64” High Panel SG240258N 44.00 SG240258P 91.00 CABLE SEPARATELY SEPARATELY
High-Low Three Way Kit For Two 76” High Panel SG240257N 44.00 SG240257P 96.00
Low-High Three Way Kit For Two 46” Low Panel SG240256N 44.00 SG240256P 89.00 CORNER 90° CONNECTION* THREE WAY CONNECTION* FOUR WAY CONNECTION*
Low-High Three Way Kit For Two 64” Low Panel SG240254N 44.00 SG240254P 92.00 *Connector kit includes 1 Extended/Corner Cable. Order additional Extended/Corner Cables as needed.
