Why pulse weld?Pulse welding alternates between the set output amperage and a reduced amperage. This allows the weld puddle to cool and solidify during each low amp cycle. Benefits of pulse welding include being able to out of position weld, welding thin material, and more visually appealing results.
Processes:
- Stick Welding (SMAW/SMAW-P)
- TIG Welding (GTAW/GTAW-P) – Requires a TIG torch with a gas valve in the handle (sold separately)
- Mild Steel | Sheet Metal
- Stainless Steel
- Lift Arc TIG capable.Requires TIG Torch (Forney® ITEM# 85659)
- Output Power: 80A/180A
- Input Voltage: 120V/240V
- Electrode Diameter:Up to 5/32"
- Plate Thickness:Up to 3/8"
- Duty Cycle (Stick): 120V: 30%@ 80A | 240V: 25%@ 180A
- Duty Cycle (TIG):120V: 30%@ 80A | 240V: 25%@ 180A
- Amperage Range (TIG): 120V: 10A-80A | 240V: 10A-180A
- Amperage Range (Stick): 120V: 10A-80A | 240V: 10A-180A
- Phase: Single
- Frequency: 50/60Hz
- Certification: CSA listed
- Connection Gas Need: 100% Argon
- Not recommended for aluminum welding
- Warranty: 3-year (power source)
- Dual-Voltage: Provides the operator flexibility for where their machine can be used
- Built Tough: Constructed with an all-metal case, built tough to take on the day to day
- Pulse Welding: Enables welding on thin materials and out of position
- Simple and Easy to Use Controls: Saves time and energy setting up each weld

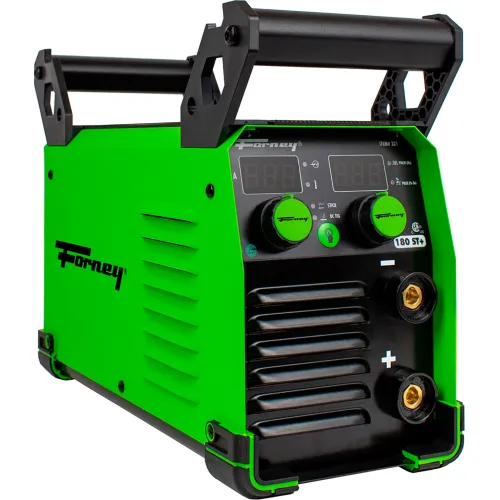

- Forney® 180 ST+ Stick/TIG Welder
- 6ft power cable
- 8ft stick electrode holder
- 8ft ground cable and clamp
- 120V-240V adapter cord
- Unit Weight: 11.9 lbs. (5,4 Kg)
- Unit Dimensions: 10-3/4" (273 mm) x 6-1/4" (159 mm) x 15" (380 mm)
- ITEM# 85659 - Air Cooled, 150A 17FV Series (Flex and Valve) TIG Torch, 12.5ft with Dinse Adapter
- ITEM# 55865 - Forney® 90th Anniversary ADF Welding Helmet
- ITEM# 70600 - Chipping Hammer, Spring Handle.
