ITEM #: WBB1789590

MPN #: PICOGLF60W24V240VS

BESTSELLER

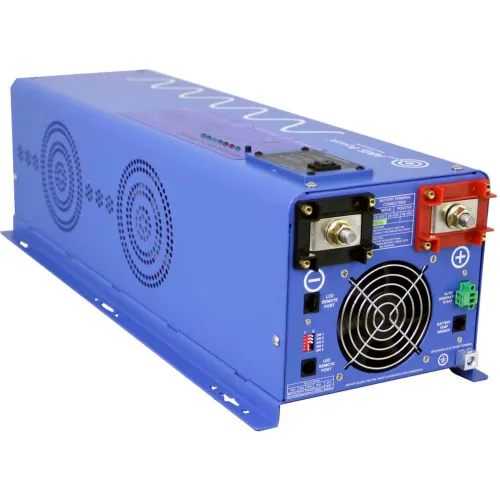

AIMS Power 6000 Watt Pure Sine Inverter Charger 120/240VAC Output, PICOGLF60W24V240VS

|
Questions & Answers (0)
PRICE
$1,816.00
Usually ships in 1 to 4 days
The 6000 Watt low frequency Inverter Charger has the power to get the job done. With a 20 second surge capacity of 18,000 watts (18kw) at a 220 volt split phase, the inverter is ideal for use with motors, pumps and compressors which generally require 3-7 times running power for startup. This split phase inverter is capable of producing 110/220vac. It will work virtually anywhere in the world, with the ability to auto detect 50 or 60 Hz. Also, the built-in charger allows for you to use your existing grid power to maintain a charge on your batteries. It also includes an Auto-Gen start that will tell your Auto-Start Compatible generator to turn on and provide power for the 24 volt battery charger.

Features:
  • 6000 watt low frequency inverter 110/220Vac Split Phase
  • 18000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • Terminal Block
  • GFCI
  • Marine Coated and Protected
  • Multi Stage Smart charger 90 Amp
  • remote panel available
  • auto gen start
  • auto frequency
  • 10msec typical transfer time
  • optional 25W power save mode
  • 8 battery charger settings


Inverter Output Specifications:
  • Continuous Output Power: 6000 Watts
  • Surge Rating: 18000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Nominal Efficiency: >88% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC


Input Specifications:
  • Nominal Input Voltage: 24.0Vdc
  • Low Battery Alarm: 21.0Vdc-22.0Vdc
  • Low battery Trip: 20.0Vdc-21.0Vdc
  • High Voltage Alarm: 32.0Vdc
  • Low battery Voltage Restart: 31.0Vdc
  • Idle Consumption: <10 amps without power saver
  • Idle Consumption in Power Saver Mode: <<1 amps


Charger Specifications:
  • Output voltage: Depends on battery Type
  • Charger Rate: 80A


Dimensions
  • Unit Weight: 79 lbs.
  • Unit Size L x W x H: 23.5 x 8.5 x 7.0 inches
  • Shipping Weight: 84 lbs.
  • Shipping L x W x H 30.5 x 14.5 x 13.75 inches
