The 87V Industrial Digital Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment even in loud, high-energy, and high-altitude locations. The 87V is designed so that users can work more efficiently.
Features:
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Measures up to 1000VAC and DC, 10A (20A for 30 seconds), and 200 kHz
- Provides resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electro mechanical equipment
- Identifies complex problems fast and supports accurate measurements on VFDs via low-pass filter
- Analog bar graph for fast changing or unstable signals
- Captures intermittent as fast as 250 µs using peak capture
- Specially designed shielding blocks high-frequency and high-energy noise generated by large drive systems from measurements
- Relative mode allows for removal of test lead resistance, improving accuracy of low-resistance measurements
- Hold function keeps readings on display even after removing probes
- Audible input alert warning sounds if test leads are placed into incorrect input jacks for measurement being performed
- Large digit display with bright, two-level backlight for easier reading in low light
- Removable holster holds test probe during testing for easier viewing
- Easy-access door for fast battery changes without breaking calibration seal
- CAT III 1000V/CAT IV 600V rated for added user safety, designed to withstand spikes of more than 8000V
Features:
- Ensures safe PV measurements, compatible with 4 mm sheathed banana plugs
- Facilitates connection of measuring devices to PV power plants
- Ideal for regular tests and troubleshooting on Staubli MC4 PV panels
- Nickel-plated contacts provide robust and reliable connections with minimal resistance and corrosion
- Color-coded black (female) and red (male) MC4 connectors for quick identification and usability
- TLPV-UTOOL Solar PV Unlocking Tool allows for easy disconnect of Staubli MC4 connectors
- LeadWrap enables organized test lead management and storage
- CAT III 1500V safety rated and complies to IEC/EN 61010-031

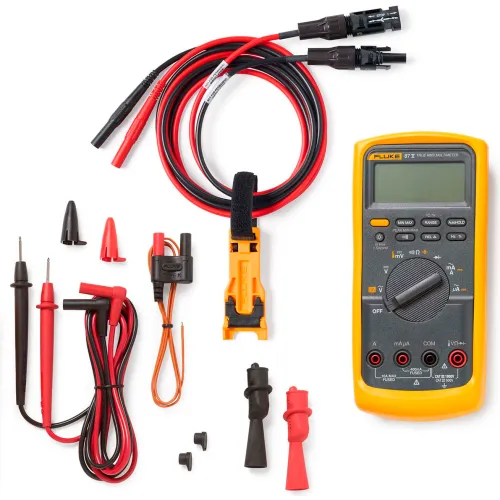

- 1 - Industrial Digital Multimeter (87V)
- 1 - Hard Point Test Lead Set, Red/Black, CAT II 1000V/CAT III 1000V/CAT IV 600V, 10A (TL75)
- 1 - Alligator Clip Set, Red/Black, CAT II 1000V/CAT III 1000V/CAT IV 600V, 10A (AC175)
- 1 - Holster with Tilt-Leg/Test Lead Storage
- 1 - Type-K Thermocouple Temperature Probe (80BK-A)
- 1 - 9V Battery, Installed
- 1 - MC4 to 4 mm Test Lead Set, Red/Black, CAT III 1500V, 30A (TLPV1)
- 1 - Solar PV Connector Unlocking Tool (TLPV-UTOOL)
