The 87V MAX Heavy-Duty Digital Multimeter contains all the trusted features from the 87V and more. From wet, dusty, or dark environments to long days, the 87V MAX was designed to help users finish the most on a work site. This instrument features a unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment. True-RMS AC voltage and accurate allows for accurate measurements on non-linear signals.
Features:
- True-RMS AC voltage and current for accurate measurements on non-linear signals
- Measures up to 1000VAC and DC, 10A (20A for 30 seconds), and 200 kHz
- Built-in temperature function and thermocouple allows for temperature readings without needing to carry separate instrument
- MIN/MAX/AVG recording plus 250 µs peak MIN-MAX to capture variations automatically
- Unique function for accurate voltage and frequency measurements on variable frequency motor drives (VFDs) and other electrically noisy equipment
- Large display digits and two-level bright, white backlight and backlit keypad buttons allow for increased visibility
- High-resolution 19,999 count display mode allows for easy reading of measurements
- IP67 rated for waterproof and dustproof operation
- Built with industrial strength case to withstand drops up to 13 ft. (4m)
- Removable holster doubles as test probe holder for one-handed operation
- Provides up to 800 hours of battery life, twice as long as 87V model
- CAT III 1000V/CAT IV 600V rated for added user safety
Features:
- Ensures safe PV measurements, compatible with 4 mm sheathed banana plugs
- Facilitates connection of measuring devices to PV power plants
- Ideal for regular tests and troubleshooting on Staubli MC4 PV panels
- Nickel-plated contacts provide robust and reliable connections with minimal resistance and corrosion
- Color-coded black (female) and red (male) MC4 connectors for quick identification and usability
- TLPV-UTOOL Solar PV Unlocking Tool allows for easy disconnect of Staubli MC4 connectors
- LeadWrap enables organized test lead management and storage
- CAT III 1500V safety rated and complies to IEC/EN 61010-031

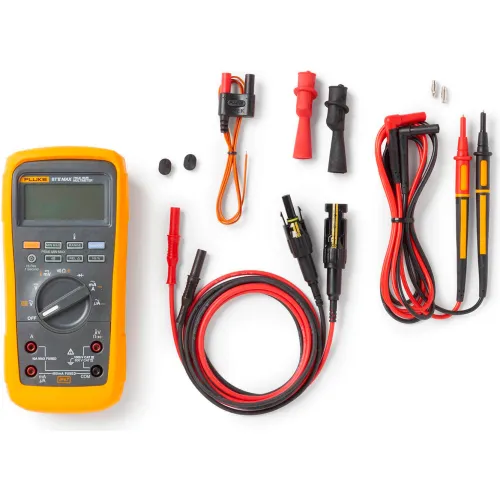

- 1 - Heavy-Duty Digital Multimeter (87V MAX)
- 1 - TwistGuard Test Lead Set, Red/Black, CAT II
- 1000V/CAT III 1000V/CAT IV 600V, 10A (TL175)
- 1 - Alligator Clip Set, Red/Black, CAT II 1000V/CAT III 1000V/CAT IV 600V, 10A (AC175)
- 1 - Type-K Thermocouple Temperature Probe (80BK-A)
- 1 - Removable Holster with Test Lead Storage
- 3 - AA Batteries, Installed
- 1 - MC4 to 4 mm Test Lead Set, Red/Black, CAT III 1500V, 30A (TLPV1)
- 1 - Solar PV Connector Unlocking Tool (TLPV-UTOOL)
