Vestil

Model # :WB985896

MPN #: S-CB-118

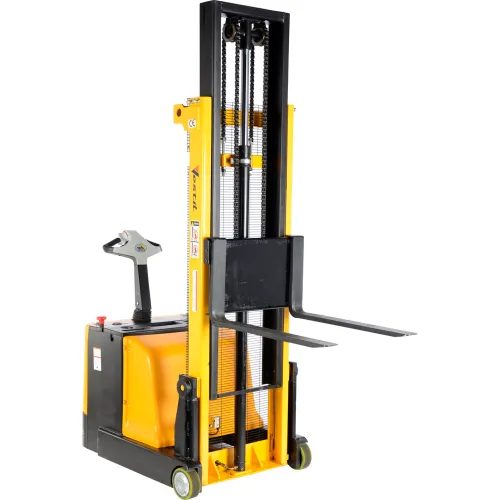

Vestil Fully Powered Counter Balanced Stacker S-CB-118 1000 Lb. Capacity

Product Description

Counter Balance Design is ideal for Die Loading and Machine Feeding. This Lift Truck is perfect for approaching racks and trucks, as there are no outriggers or straddle legs that would obstruct a close approach. High-torque 24V DC 0.7 KW drive and 2.0 KW lift motors offer 3-4 hours of operation at full charge or 8 hours when used intermittently. Ergonomic handle features a throttle with an infinite adjustment of forward/reverse speeds, lift/lower controls, auto-reverse safety belly button switch and horn. Counter-balanced Stacker has an electromagnetic disc brake with an automatic dead-man feature that activates when the user releases the handle. Truck includes (2) 12V 95AH lead acid deep cycle batteries, integral battery charger and battery level gauge. 30"L x 3-¼"W forks offer 15" load center and adjust from 6-¼" to 23-½" O.D. Stacker rolls smoothly on 10" dia. polyurethane steer and 6-¼" dia. polyurethane load wheels. 90 Day Limited Warranty. Note: The Overall Height of the Stacker Mast at the Maximum 118" Lift Height is 135-1/2" High.Dock required for Delivery.

PRICE
$12,284.00

1
1

Bulk Pricing

Quantity
Pricing
Buy 1 unit
12284.00
Buy 2 units - 3 units
11115.00Save $1169.00 (10%)
Buy 4+ units
10765.00Save $1519.00 (12%)
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length78 in
Width33 in
Height78 in
Lowered Height2 in
Raised Height118 in
Weight Capacity1000 from 0" to 62"H; 500 from 62" to 118"H lbs
Weight1992 lbs
Fork Length30 in
Fork Width3-1/4 in
Wheel Diameter6-1/4 Front; 10 Rear in
Overall Fork Width6-1/4 to 23-1/2 (adjustable) in
Travel Speed3.2 mph
Lift Speed20 ft/min
Load Center15 in
Turning Radius44-1/2 °

Product Details

Assembly RequiredNo
Charger15 amp / 120V
Mast StyleTelescopic
MaterialSteel
Lift Motor2.0 KW
Manufacturers Part NumberS-CB-118
BrandVestil
PowerBattery Operated
TypeCounter Balanced
ColorBlack
Wheel TypePolyurethane
Duty Cycle per Charge3 to 4 Hours; 8 Hours Intermittent Use
Batteries(2) 12V / 95AH
Drive Motor0.7 KW kW

Warranty

Warranty90 days
