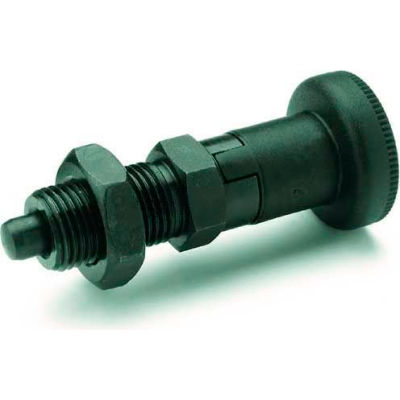

J.W. Winco Indexing Plunger Standard Lock-Out & Nut Black 11.0x30N Pressure M16x1.5 Thread 8x7mm Pin

J.W. Winco Indexing Plunger Standard Lock-Out & Nut Black 11.0x30N Pressure M16x1.5 Thread 8x7mm Pin

Item #: WBB1033013

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $18.00

Save $0.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Indexing Plunger Standard Lock-Out & Nut Black 11.0x30.0N Pressure M16x1.5 Thread 8x7mm Pin

Indexing plungers GN 617.1 with lock-out position are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. The head of the plunger body is provided with a suitable notch in opposite positions so as to prevent the plunger from accidentally slipping back into its forward position. The maximum heat resistance of the nylon plastic hand knob is 110°C or 230°F. For indexing plungers with a fully threaded body, see GN 613. Indexing plungers with non lock-out position, see GN 617. And for indexing plungers without a threaded body, see GN 618.

Features
  • Threaded body: Steel, black oxide finish
  • Plunger pin: Steel, hardened
  • Knob: Matte black glass fiber reinforced nylon plastic, not removable
  • Inch size lock nut: Steel, black oxide finish, ANSI/ASME
  • Metric size lock nut: Steel, black oxide finish, DIN 439/ISO 4035


  • Product Specifications

    • BRANDJ.W. Winco
    • END PRESSURE START11.0 N
    • NOSE CONSTRUCTIONSteel
    • LOCK NUTYes
    • END PRESSURE FULL30.0 N
    • LOCK-OUTYes
    • DESCRIPTIONIndexing Plunger
    • KNOB DIAMETER31 mm
    • BODY CONSTRUCTIONBlack Oxide Steel
    • PIN LENGTH7 mm
    • PIN DIAMETER8 mm
    • MANUFACTURERS PART NUMBER617.1-8-M16X1.5-AK
    • THREAD SIZEM16 x 1.5
    • TYPEStandard
    • THREAD LENGTH26 mm
    • OVERALL LENGTH (OAL)75.5 mm
