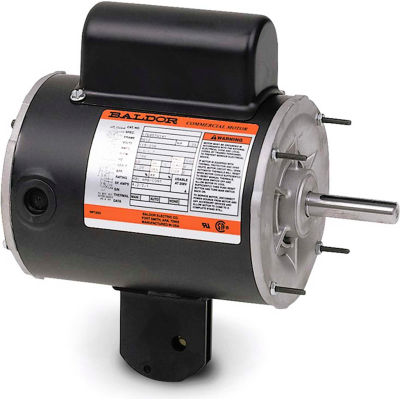

Baldor-Reliance Motor YPC364A, .5HP, 1075RPM, 1PH, 60HZ, 48YZ, 1720C, TEAO, F1

Baldor-Reliance Motor YPC364A, .5HP, 1075RPM, 1PH, 60HZ, 48YZ, 1720C, TEAO, F1

Item #: WBB392003

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $297.95

Save $14.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1075RPM,1PH,60HZ,48YZ,1720C,TEAO,F1

Features:
  • 1.0 service factor
  • 40°C ambient
  • Automatic thermal overload
  • Ball bearing
  • Class B insulation
  • Extended thru-bolts on 5.13 inch bolt circle for mounting fan shroud
  • Heavy gage steel yoke with 180° slot for wide angle rotation
  • Permanent split capacitor
  • Pull chain switch (2spd only) for high and low speed
  • Reversible rotation
  • Shaft slinger
  • Terminal panel with quick connections
Typical Applications:
Designed for air circulation

Product Specifications

  • HORSEPOWER1/2
  • ENCLOSURETEAO
  • FRAME48YZ
  • BRANDBaldor-Reliance
  • MOUNTINGYoke/Pedestal
  • MOTOR RPM 60Hz1075
  • RPM1075
  • PHASE1
  • VOLTAGE115
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT25
  • RPM RANGE1001-1100
  • SERVICE-FACTOR-AMPS--
  • MANUFACTURER PART NUMBERYPC364A
  • THERMAL-SELECTN
  • 208V AMPS--
  • KVA-CODEB
  • POWER-FACTOR--
  • FL EFFICIENCY68.4
  • SERIAL-NUMBER--
  • SPEC. NUMBER17E141W022
  • DESIGN CODE-
  • BALDOR CATALOG NUMBERYPC364A
  • FL AMPS5.6
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES11.1
  • POLES6
  • INSULATION CLASSB
