FULLY POWERED REACH STACKER
Fully Powered Reach Stacker lifts, lowers and moves loads in seconds Reach Stacker features powered 25" Fork Reach to assist with accessing pallets. Forks tilt forward 3° and backward 5°. Compact 63" turning radius for tight aisles. 2 KW lift motor raises loads 17 ft./min loaded and 27 ft./min. unloaded. Travels via 0.7 KW drive motor at 3.1 mph loaded and 3.7 mph unloaded. 42"L x 6"W forks offer a 24" load center. (2) 12V / 70AH batteries offer 8 hours service per charge. Includes integral 6 amp 120V battery charger and battery gauge. Ergonomic controls include fingertip raise/lower controls, infinite forward/reverse throttle, horn, safety belly reverse button and emergency disconnect. Safety switch on the mast reduces speed to 50% when the forks are raised to 12-½".Forks Inside Adjustable Straddle Legs model is ideal for use with pallets. Straddle Legs are adjustable from 40" to 50" I.D. & 46" to 58" O.D. 1 Year Limited Warranty.Note: 1500 Lb. Capacity for 0" to 62" Lift Height Range; 1000 Lb. Capacity for 63"H to Maximum Lift Height Range.Dock required for Delivery.

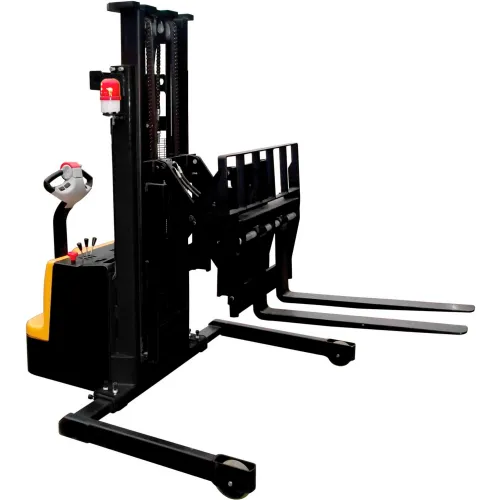

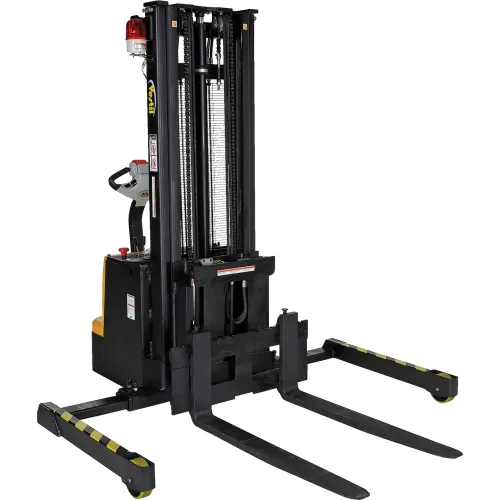

Vestil Fully Powered 25" Reach Stacker S-118-AA-FR 1500 Lb 118"H Adj Forks Inside Adj Straddle Legs
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$22,574.00
1
1
Ships in 10 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 83-1/2 in |
| Width | 46 to 58 in |
| Height | 79 in |
| Lowered Height | 2-1/2 in |
| Raised Height | 118 in |
| Weight Capacity | 1500 lbs |
| Weight | 1720 lbs |
| Fork Length | 42 in |
| Fork Width | 6 in |
| Overall Fork Width | 8-1/2 to 26-3/4 (adjustable) in |
| Straddle Leg Width | 46 to 58 O.D. in |
| Travel Speed | 3.1 Loaded; 3.7 Unloaded mph |
| Lift Speed | 17 Loaded; 27 Unloaded ft/min |
| Load Center | 24 in |
Product Details
| Assembly Required | No |
| Charger | 6 amp / 120V |
| Mast Style | Telescopic |
| Material | Steel |
| Lift Motor | 2.0 KW |
| Manufacturers Part Number | S-118-AA-FR |
| Brand | Vestil |
| Power | Battery Operated |
| Type | Adjustable Forks Inside Adjustable Straddle Legs |
| Color | Yellow |
| Duty Cycle per Charge | 3 to 4 Hours; 8 Hours Intermittent Use |
| Batteries | (2) 12V / 70AH |
| Drive Motor | 0.7 KW kW |
Warranty
| Warranty | 1 yr |
