AmScope B120C-E 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage + USB Camera

Questions & Answers (0)
was $529.99
Save $248.04 (46.80%)
Free Shipping Usually ships in 2 to 5 days

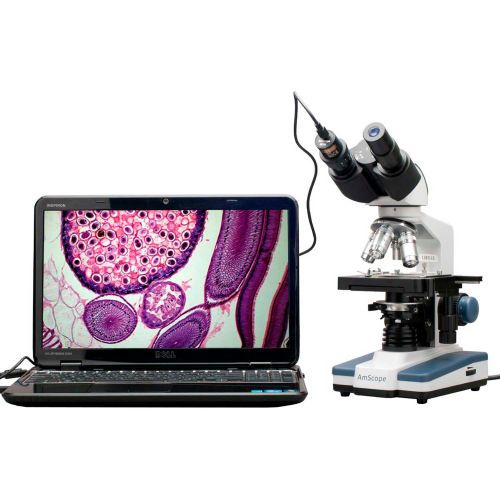

    AmScope new binocular compound microscope with USB digital camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 640x480 pixel USB camera. There are six magnification settings. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

    Microscope Features:
    • 30 degree inclined 360 degree swiveling Siedentopf binocular head
    • High quality precise optical glass elements
    • Six magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X
    • Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)
    • Two pairs of widefield eyepieces: WF10X and WF25X
    • Adjustable interpupillary distance
    • Adjustable ocular diopter
    • Variable intensity illumination
    • Coaxial coarse and fine focus adjustment
    • Focusing knobs are on both sides of the microscope
    • Stage upward moving lock protects objectives and slides
    • Stain-resistant double layer mechanical stage
    • NA1.25 Abbe Condenser with iris diaphragm & filters
    • Rack and pinion adjustment condenser
    • Manufactured under ISO 9001 Quality Control Standard
    • Excellent five (5) year manufacturer warranty
    • Eyepieces: widefield, WF10X and WF25X
    • Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
    • Head: 30 degree inclined 360 degree swiveling binocular
    • Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)
    • Adjustable ocular diopter
    • Nosepiece: revolving quadruple
    • Mechanical Stage: 3-D double layer
      • Size: 4-5/8" x 5" (118mm x 127mm)
      • Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)
    • Condenser: NA1.25 Abbe condenser with iris diaphragm
    • Illumination: LED light, transmitted, intensity adjustable, GS and CE approved
    • Focusing: coaxial coarse & fine knobs on both sides
    • Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included
    • Dimension: 11" x 7" x 13-3/4" (280 x 178 x 350mm)
    Camera Specifications:
    • Sensor: Aptina
    • Sensor Type: CMOS
    • Sensor Size: 3.58x2.69mm
    • Pixel Size: 5.6
    • Resolution: .35MP (640x480)
    • Frame Rate: 30@640x480
    • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)
    Software Specifications:
    • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10
    • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
