- AC Drive Unit, Curtis Controller, 160 Ah Battery
- 7 hours working time
- Fork tip with 3 Entry Rollers and 4 Exit Rollers for easy Entry/Exit from pallets.
- Designed to handle slopes up to 12% when Unloaded, 8% when Loaded.
- Creep Button for use in confined areas.

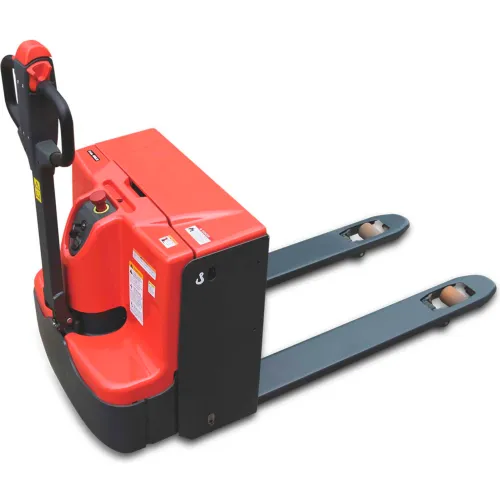

Ballymore Self-Propelled Electric Pallet Jack, 4000 lb. Capacity, 27"W x 48"L Forks
Write a Review
|
Questions & Answers (0)
Product Description
Features:
PRICE
$5,399.00
1
1
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 68-3/8 in |
| Width | 27 in |
| Height | 48-1/2 in |
| Lowered Height | 3 in |
| Raised Height | 7-3/4 in |
| Weight Capacity | 4000 lbs |
| Weight | 913 lbs |
| Fork Length | 48 in |
| Fork Width | 6-3/8 in |
| Distance Between Forks | 16-1/2 in |
| Distance Across Forks | 29 in |
| Wheel Diameter | 3 in |
| Travel Speed | Loaded: 3.1 MPH ; Unloaded: 3.3 mph |
| Turning Radius | 60 ° |
Product Details
| Assembly Required | No |
| Duty Cycle | 7 Hours |
| Gradeability | 8% Loaded; 12% Unloaded |
| Charger | Integral 20 amp 120V |
| Material | Steel |
| Operation | Electric |
| Manufacturers Part Number | BALLYPAL40L |
| Brand | Ballymore |
| Type | Self Propelled |
| Color | Red |
| Lift Type | Powered |
| Wheel Type | 3 Entry Rollers, 4 Exit Rollers |
| Style | Standard Forks |
| Load Wheel Material | Polyurethane |
| Duty Cycle per Charge | 7 Hours |
| Batteries | (1) AGM 24V/160AH |
| Lower Type | Powered |
Warranty
| Warranty | 1 yr |
