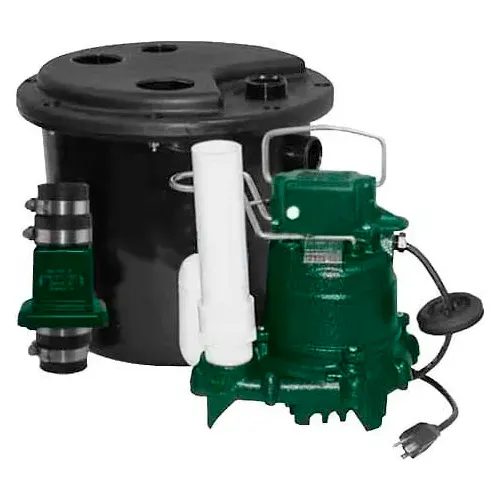

Zoeller Drain Pump System 131-0001 With M98 Pump, 1/2 HP

Zoeller M292 automatic High head waste-mate submersible Sewage or dewatering pump. This pump has 2" NPT discharge which passes 2" spherical solids. Integral float operated mechanical switch, no external control required. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles. Durable cast iron constructed switch case, base, motor and pump housing - No sheet metal parts to rust or corrode - All cast iron class 25-30 25000# tensile strength - Stainless steel screws, bolts, float rod, handle, guard, arm ...

Zoeller M264 Waste-Mate automatic submersible Sewage/effluent or dewatering pumps. Submersible pump with 1 2" NPT discharge which passes 3/4" spherical solids. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles. Consult factory for special applications. Float operated, submersible (NEMA 6) 2 pole switch - Durable cast iron construction - switch cap, motor and pump housing - Engineered plastic base - Stainless steel screws, bolts, handle, guard, arm and seal assembly - Corrosion-resistant, powder ...

Zoeller N270 Waste-mate non automatic submersible Sewage/effluent or dewatering pump. This pump has 2" NPT discharge which passes 2" spherical solids. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non automatic pumps. Consult factory for special applications. Not affected by materials normally found in drainage and Sewage sumps - Stainless steel screws, bolts and handle - Corrosion-resistant, powder coated epoxy finish - Minimum recommended basin size (small load ...

Zoeller N163 Flow-mate for septic tank - low pressure pipe (LPP) and enhanced flow step systems. Effluent or dewatering submersible pump with 1 1/2" NPT discharge. Passes 3/4" spherical solids. The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non automatic pumps. Integral float operated mechanical switch, no external control required. durable cast iron constructed switch case, base, motor and pump housing - Corrosion-resistant, powder coated epoxy finish - No screens to clog ...

Features: Top suction, durable, cast iron 1/2 HP primary pump with vertical float switch for automatic operation High flow, corrosion-resistant, battery back-up pump with reliable reed float switch with battery box and charger (2) Heavy-duty check valves Pre-assembled and preset for quick installation. Simple drop-in installation! Designed for 15 in. diameter or larger sump basins 120 VOLT PRIMARY PUMP (CDU800): 1/2 HP; max. flow rate is 4200 Gallons Per Hour; 3150 GPH at 10 ft. of discharge lift. Approximate on level @ 9 in. - off level @ 4 in. 12 VOLT BACK-UP PUMP (ESP25): Back-up pump ...
