- True RMS AC voltage and current for accurate measurements on complex signals or non linear loads
- Compatible with Fluke® Connect (requires IR 3000 FC infrared connector)
- TrendCapture quickly and graphically displays logged data sessions
- Zoom on trend provides ability to view and analyze TrendCapture data; zoom in up to 14x
- Selectable AC filter (smoothing mode) displays steadier readings when input signal changes rapidly or noisily
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event
- Large, white, 50,000-count, backlit 1/4 VGA display
- Multiple sets of measurements can be simultaneously displayed
- Logging function with expanded memory for unattended monitoring of signals over time
- Store up to 15,000 recorded events
- On-board help screens for measurement functions
- Saved measurements allow you to name and recall measurements made in the field
- Multi-lingual interface
- Multiple logging sessions possible without download
- 0.025% basic DC accuracy
- 100 kHz AC bandwidth
- Real-time clock for automatic time stamping
- AC bandwidth specified to 100 kHz
- Measure up to 10 A (20 A for 30 seconds)
- 100 mF capacitance range
- Temperature function
- Relative mode to remove test lead resistance from low ohms or capacitance measurements
- Peak capture to record transients as fast as 250 µs
- FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents

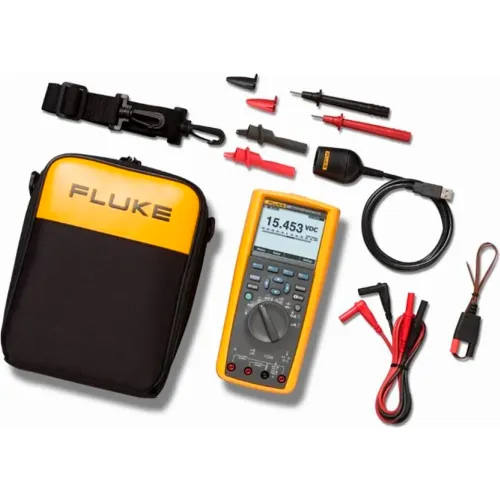

- 1 - True RMS Electronics Logging Digital Multimeter with TrendCapture (287)
- 1 - FlukeView Forms Software and Cable (FVF-SC2)
- 1 - Thermocouple Probe (80BK-A)
- 1 - CAT III 1000 V 10 A Modular Test Lead Set (Red/Black)
- 1 - CAT II 1000 V 10 A Modular Test Probe Set with Caps (Red/Black)
- 1 - CAT III 1000 V 10 A Alligator Clip Set (Red/Black)
- 1 - Soft Case (C280)
- 1 - Amp Jack Plug Set
- 1 - Magnetic Meter Hanger (TPAK)
