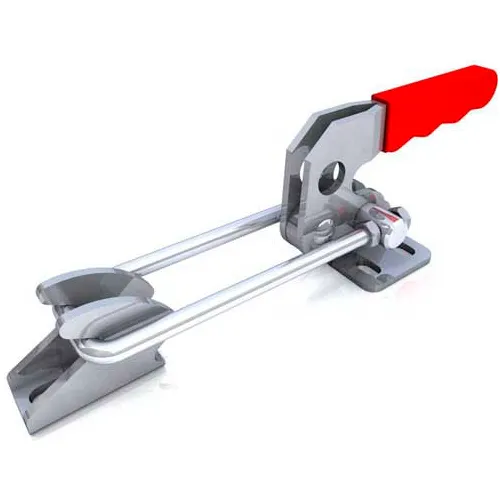

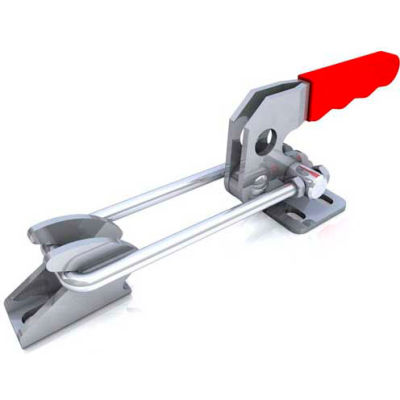

J.W. Winco, GN851.1 Vertical Hook-Type Toggle Clamp, 851.1-160-T3, W/ Pull Latch, Sheet Metal

J.W. Winco, GN851.1 Vertical Hook-Type Toggle Clamp, 851.1-160-T3, W/ Pull Latch, Sheet Metal

Item #: WBB1172507

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $18.50

Save $0.93 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

J.W. Winco GN851 Latch Type Toggle Clamp, 851-160-T2, Size 160, Steel

J.W. Winco GN851 Latch Type Toggle Clamp, 851-160-T2, Size 160, Steel

J.W. Winco, 451 Hook Type Toggle Clamp, JW-451, Horizontal Base, Sheet Metal Steel

J.W. Winco, 451 Hook Type Toggle Clamp, JW-451, Horizontal Base, Sheet Metal Steel

J.W. Winco, 12130 Vertical Acting Toggle Clamp, JW-12130, Flanged Base, Sheet Metal Steel

J.W. Winco, 12130 Vertical Acting Toggle Clamp, JW-12130, Flanged Base, Sheet Metal Steel

J.W. Winco, 304/305 Push-Pull Toggle Clamp, JW-305-H, 1500 Lb Cap, Sheet Metal Steel

J.W. Winco, 304/305 Push-Pull Toggle Clamp, JW-305-H, 1500 Lb Cap, Sheet Metal Steel

J.W. Winco, 36003 Push-Pull Toggle Clamp, JW-36003, 600 Lb Cap, Sheet Metal Steel

J.W. Winco, 36003 Push-Pull Toggle Clamp, JW-36003, 600 Lb Cap, Sheet Metal Steel

J.W. Winco, 36092 Push-Pull Toggle Clamp, JW-36092, 300 Lb Cap, Sheet Metal Steel

J.W. Winco, 36092 Push-Pull Toggle Clamp, JW-36092, 300 Lb Cap, Sheet Metal Steel

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

3" Metal Spring Clamp - Pkg Qty 5

3" Metal Spring Clamp - Pkg Qty 5

3" Resin Spring Clamp - Pkg Qty 5

3" Resin Spring Clamp - Pkg Qty 5

J.W. Winco, GN851.1 Vertical Hook-Type Toggle Clamp, 851.1-160-T3, W/ Pull Latch, Sheet Metal

Features:
  • Toggle clamp: Case-hardened sheet metal (steel C10) Zinc plated
  • Blue passivated finish Zinc plated steel rivets in case-hardened bushings have bearing spots greased Open twin-arm and horizontal base Hand grip: High quality
  • Oil resistant red plastic Type T3 - With pulling latch
  • With latch bracket Type T - Without pulling latch

Weights & Dimensions

  • M2 6.5, (.26)
  • B3 21, (.83)
  • B1 26, (1.02)
  • M5 14.3, (.56)
  • Dimension D2 4.3, (.17) in
  • H1 36, (1.42)
  • M4 6.5, (.26)
  • B2 35, (1.38)
  • B5 14, (.55)
  • B4 25.5, (1.00)
  • M1 22, (.87)
  • L2 Min 4.5, (.18) in
  • M3 13, (.51)
  • Dimension l1~ 68, (2.68)
  • Dimension H2 10, (.39) in

Product Details

  • a 5, (.20)
  • Max Holding Capacity 1600 N
  • s 2, (.08)
  • Type Vertical W/ Pull Latch
  • W1 Hub 34.5, (1.36)
  • W2 Adjustment Length 10, (.39)
  • Material Hardened Sheet Metal Zinc Plated
  • Base Type Horizontal
  • Style Hook
  • R~ 50, (1.97)
  • Description Toggle Clamp
  • D1 Thread M4 x 0.75
  • Brand J.W. Winco
  • Series GN 851.1
  • Manufacturers Part Number 851.1-160-T3
