- Keyed On/Off switch
- Variable drive speed (2-1/2 MPH factory set max)
- Curtis TM-1 Tiller Head is equipped with emergency reverse switch, electronic throttle, & rocker switches
- Tiller head features a horn for added safety, & gas spring to automatically return head to upright position when not in use
- 12" drive wheel with safety cover
- 24-volt DC system powered
- Battery indicator gauge
- Batteries & 12V AC charger included
- Straddle model legs measure 23" long, and 25" between each leg
- Maximum lift height from center of jaws to floor:
- - 90" models - 82-1/2"
- - 78" models - 70-1/2"
- Max Lift Speed = 17 FPM
- Max Rotate Speed = 6 RPM

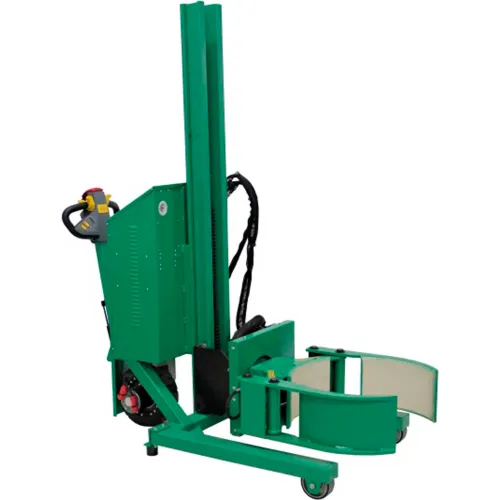

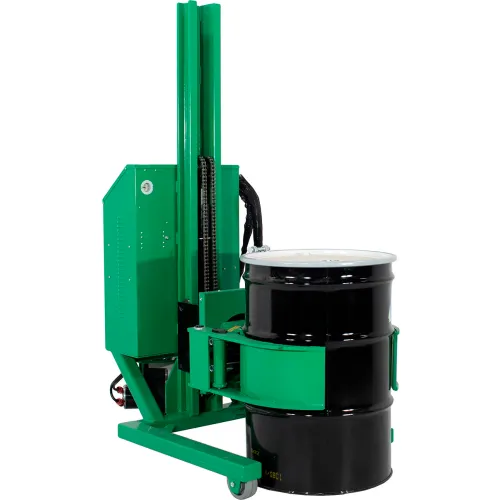

Valley Craft® Fully Powered Drum Lift & Rotator, 84" Max Lift, Grip Connection, 1000 lb. Cap.
Write a Review
|
Questions & Answers (0)
Product Description
Valley Craft has added power drive to their already dependable Roto-Grip™ & Roto-Lift™ drum handlers, making transport, lifting and dumping safer and easier than ever before all in one piece of equipment. Power-drive wheels plus full-function hydraulic lift and pour means any operator can move drums. Eliminate operator effort in moving 1,000-lb+ loads, while reducing injury rates from heavy handling by more than 50%. A powered drum handler can provide substantial cost savings by eliminating the need for fork lifts, and feature fully adjustable and programmable controls with 1 - 2.5 mph speed controls. Units easily handle grades up to 5°.
PRICE
$21,659.00
1
1
Ships in 15 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Length | 62 in |
| Width | 32 in |
| Height | 90 in |
| Raised Height | 84 in |
| Weight Capacity | 1000 lbs |
| Weight | 1035 lbs |
| Wheel Diameter | 5 Front / 12 Rear in |
| Lift Speed | 17 ft/min |
Product Details
| Assembly Required | No |
| Type | Drum Lifter & Rotator |
| Drum Compatibility | Steel Drum/Plastic Drum/Fiber Drum |
| Color | Green |
| Caster Type | (2) Rigid |
| Wheel Type | 2 Rigid, 1 Power |
| Material | Steel |
| Operation | Powered |
| Drum Capacity | 30/55/85 gal |
| Manufacturers Part Number | F80143A6 |
| Brand | Valley Craft |
Warranty
| Warranty | 1 Year |
