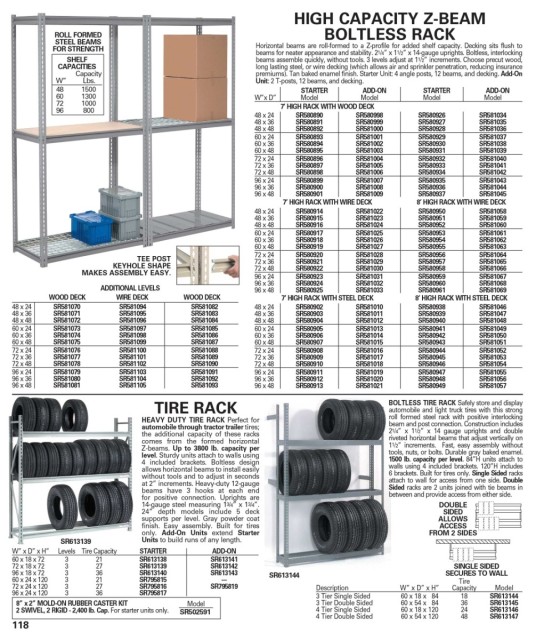

P. 118

HIGH CAPACITY Z-BEAM

               ROLL FORMED                                           BOLTLESS RACK
               STEEL BEAMS
              FOR STRENGTH                             Horizontal beams are roll-formed to a Z-profile for added shelf capacity. Decking sits flush to
                                                       beams for neater appearance and stability. 2 1/4” x 1 1/2” x 14-gauge uprights. Boltless, interlocking
                 SHELF                                 beams assemble quickly, without tools. 3 levels adjust at 1 1/2” increments. Choose precut wood,
                CAPACITIES                             long lasting steel, or wire decking (which allows air and sprinkler penetration, reducing insurance
                   Capacity                            premiums). Tan baked enamel finish. Starter Unit: 4 angle posts, 12 beams, and decking. Add-On
                  W”         Lbs.                      Unit: 2 T-posts, 12 beams, and decking.
                48   1500                                       STARTER     ADD-ON      STARTER      ADD-ON
                60   1300                              W”x D”  Model  Price  Model  Price  Model  Price  Model  Price
                72   1000                                 7’ HIGH RACK WITH WOOD DECK  8’ HIGH RACK WITH WOOD DECK
                96   800
                                                       48 x 24  SG580890  $125.00  SG580998 $118.00  SG580926 $189.00  SG581034 $142.00
                                                       48 x 36  SG580891  163.00  SG580999   157.00  SG580927  213.00  SG581035  164.00
                                                       48 x 48   SG580892  182.00  SG581000  173.00  SG580928  241.00  SG581036  181.00
                                                       60 x 24  SG580893  145.00  SG581001  155.00  SG580929  197.00  SG581037  158.00
                                                       60 x 36  SG580894  168.00  SG581002  176.00  SG580930  225.00  SG581038  181.00
                                                       60 x 48  SG580895  197.00  SG581003  201.00  SG580931  230.00  SG581039  195.00
                                                       72 x 24   SG580896  205.00  SG581004  194.00  SG580932  248.00  SG581040  179.00
                                                       72 x 36  SG580897  226.00  SG581005  211.00  SG580933  301.00  SG581041  222.00
                                                       72 x 48  SG580898  256.00  SG581006  241.00  SG580934  345.00  SG581042  256.00
                                                       96 x 24  SG580899  263.00  SG581007  248.00  SG580935  296.00  SG581043  232.00
                                                       96 x 36  SG580900  286.00  SG581008  258.00  SG580936  296.00  SG581044  274.00
                                                       96 x 48  SG580901  339.00  SG581009  316.00  SG580937  347.00  SG581045  314.00
                                                            7’ HIGH RACK WITH WIRE DECK  8’ HIGH RACK WITH WIRE DECK
                                                       48 x 24  SG580914  $195.00  SG581022 $186.00  SG580950 $243.00  SG581058 $182.00
                                                       48 x 36  SG580915  242.00  SG581023  229.00  SG580951  243.00  SG581059  217.00
                                                       48 x 48  SG580916  280.00  SG581024  261.00  SG580952  344.00  SG581060  255.00
                                                       60 x 24  SG580917  247.00  SG581025  224.00  SG580953  281.00  SG581061  220.00
                                                       60 x 36  SG580918  274.00  SG581026  257.00  SG580954  318.00  SG581062  258.00
                                                       60 x 48  SG580919  318.00  SG581027  296.00  SG580955  372.00  SG581063  307.00
                                                       72 x 24  SG580920  278.00  SG581028  255.00  SG580956  332.00  SG581064  248.00
                               TEE POST                72 x 36  SG580921  328.00  SG581029  301.00  SG580957  403.00  SG581065  295.00
                          KEYHOLE SHAPE                72 x 48  SG580922  402.00  SG581030  373.00  SG580958  503.00  SG581066  360.00
                    MAKES ASSEMBLY EASY.               96 x 24  SG580923  353.00  SG581031  329.00  SG580959  362.00  SG581067  310.00
                                                       96 x 36  SG580924  440.00  SG581032  396.00  SG580960  450.00  SG581068  393.00
                         ADDITIONAL LEVELS             96 x 48  SG580925  514.00  SG581033  478.00  SG580961  541.00  SG581069  458.00
               WOOD DECK       WIRE DECK    WOOD DECK       7’ HIGH RACK WITH STEEL DECK  8’ HIGH RACK WITH STEEL DECK
      48 x 24   SG581070   $38.00   SG581094  $61.00   SG581082  $68.00  48 x 24  SG580902  $182.00  SG581010 $186.00  SG580938 $227.00  SG581046 $179.00
      48 x 36   SG581071  58.00   SG581095   76.00   SG581083  94.00  48 x 36  SG580903  218.00  SG581011  222.00  SG580939  289.00  SG581047  226.00
      48 x 48   SG581072  60.00   SG581096  96.00   SG581084  117.00  48 x 48  SG580904  266.00  SG581012  268.00  SG580940  335.00  SG581048  273.00
      60 x 24  SG581073  51.00   SG581097  74.00   SG581085  73.00  60 x 24  SG580905  217.00  SG581013  219.00  SG580941  270.00  SG581049  212.00
      60 x 36  SG581074  64.00   SG581098  90.00   SG581086  91.00  60 x 36  SG580906  259.00  SG581014  265.00  SG580942  311.00  SG581050  268.00
      60 x 48  SG581075  69.00   SG581099  99.00   SG581087  115.00  60 x 48  SG580907  318.00  SG581015  320.00  SG580943  373.00  SG581051  326.00
      72 x 24  SG581076  64.00   SG581100  92.00   SG581088  94.00  72 x 24  SG580908  256.00  SG581016  258.00  SG580944  316.00  SG581052  248.00
      72 x 36  SG581077  86.00   SG581101  114.00   SG581089   99.00   72 x 36  SG580909  310.00  SG581017  312.00  SG580945  402.00  SG581053  316.00
      72 x 48   SG581078  94.00   SG581102  137.00   SG581090  121.00   72 x 48  SG580910  380.00  SG581018  383.00  SG580946  481.00  SG581054  389.00
      96 x 24   SG581079  86.00   SG581103  114.00   SG581091  118.00  96 x 24  SG580911  327.00  SG581019  329.00  SG580947  333.00  SG581055  313.00
      96 x 36  SG581080  106.00   SG581104  150.00   SG581092  146.00  96 x 36  SG580912  396.00  SG581020  401.00  SG580948  404.00  SG581056  405.00
      96 x 48  SG581081  121.00   SG581105  175.00   SG581093  176.00  96 x 48  SG580913  491.00  SG581021  494.00  SG580949  498.00  SG581057  500.00
                                   TIRE RACK                                     BOLTLESS TIRE RACK Safely store and display
                                                                                 automobile and light truck tires with this strong
                                HEAVY DUTY TIRE RACK Perfect for                 roll formed steel rack with positive interlocking
                                automobile through tractor trailer tires;        beam and post connection. Construction includes
                                the additional capacity of these racks           2 1/4” x 1 1/2” x 14 gauge uprights and double
                                comes from the formed horizontal                 riveted horizontal beams that adjust vertically on
                                Z-beams.  Up to 3800 lb. capacity per            1 1/2” increments.  Fast, easy assembly without
                                level. Sturdy units attach to walls using        tools, nuts, or bolts. Durable gray baked enamel.
                                4 included brackets. Boltless design             1500 lb. capacity per level. 84”H units attach to
                                allows horizontal beams to install easily        walls using 4 included brackets. 120”H includes
                                without tools and to adjust in seconds           6 brackets. Built for tires only. Single Sided racks
                                at 2” increments. Heavy-duty 12-gauge            attach to wall for access from one side. Double
                                beams have 3 hooks at each end                   Sided racks are 2 units joined with tie beams in
                                for positive connection. Uprights are            between and provide access from either side.
                                14-gauge steel measuring 1 3/4” x 1 3/4”.                  DOUBLE
                                24” depth models include 5 deck                             SIDED
                                supports per level. Gray powder coat                       ALLOWS
                                finish. Easy assembly. Built for tires                     ACCESS
                                only.  Add-On Units  extend  Starter                     FROM 2 SIDES
                SG613139        Units to build runs of any length.
      W” x D” x H”  Levels Tire Capacity  STARTER  Price  ADD-ON  Price
      60 x 18 x 72  3  21    SG613138 $259.00   SG613141  $191.00
      72 x 18 x 72  3  27    SG613139  304.00   SG613142  227.00                              SINGLE SIDED
      96 x 18 x 72  3  36    SG613140  342.00   SG613143  251.00   SG613144                  SECURES TO WALL
      60 x 24 x 120  3  21   SG795815  353.00   ---  ---                                    Tire
      72 x 24 x 120   3  27  SG795816  373.00   SG795819  271.00   Description   W” x D” x H”  Capacity  Model  Price
      96 x 24 x 120   3  36  SG795817  411.00                      3 Tier Single Sided  60 x 18 x   84  18  SG613144 $119.00
       8” x 2” MOLD-ON RUBBER CASTER KIT   Model  Price/set of 4   3 Tier Double Sided  60 x 54 x   84  36  SG613145  236.00
       2 SWIVEL, 2 RIGID - 2,400 lb. Cap. For starter units only. SG502591  $104.00  4 Tier Single Sided  60 x 18 x 120  24  SG613146  164.00
                                                                                            48
                                                                                                 SG613147  325.00
                                                                                 60 x 54 x 120
                                                                   4 Tier Double Sided
