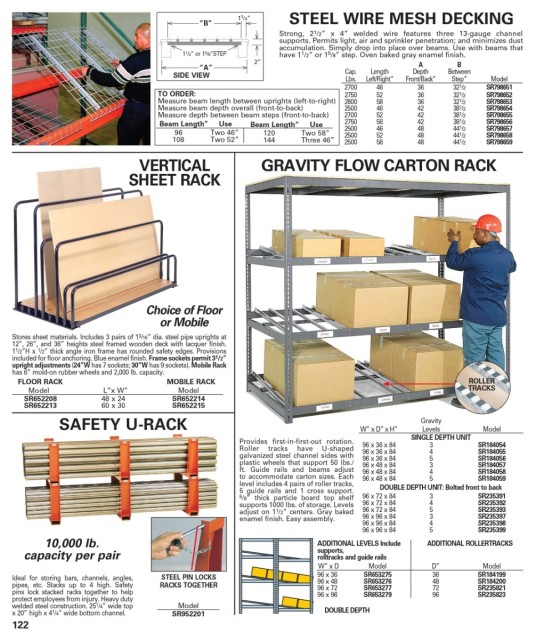

P. 122

1 /4”      STEEL WIRE MESH DECKING
                                                    3
                                            “B”
                                                            Strong, 2 1 /2” x 4” welded wire features three 13-gauge channel
                                                            supports. Permits light, air and sprinkler penetration; and minimizes dust
                                                            accumulation. Simply drop into place over beams. Use with beams that
                                                                     5
                                                                1
                                        1 1 /2” or 1 5 /8”STEP  have 1 /2” or 1 /8” step. Oven baked gray enamel finish.
                                                       2”
                                                                                     A
                                                                                           B
                                            “A”                          Cap.  Length  Depth  Between  Price Each
                                      SIDE VIEW
                                                                         Lbs. Left/Right” Front/Back”  Step”  Model   1-12       13+
                                                                         2700  46    36   32 1 /2  SG798651 $27.00 $26.00
                                   TO ORDER:                             2750  52    36   32 1 /2  SG798652 31.00  31.00
                                   Measure beam length between uprights (left-to-right)  2800  58  36  32 1 /2  SG798653 33.00  33.00
                                   Measure beam depth overall (front-to-back)  2500  46  42  38 1 /2  SG798654 31.00  31.00
                                   Measure depth between beam steps (front-to-back)  2700  52  42  38 1 /2  SG798655 35.00  35.00
                                                                                                         37.00
                                    Beam Length”     Use     Beam Length”     Use    2750  58  42  38 1 /2  SG798656 37.00  36.00
                                                                                     48
                                                                         2500
                                                                              46
                                                                                              SG798657 36.00
                                                                                          44 1 /2
                                           96            Two 46”         120            Two 58”  2500  52  48  44 1 /2  SG798658 41.00  40.00
                                          108            Two 52”         144            Three 46”  2500  58  48  44 1 /2  SG798659 43.00  42.00
                                VERTICAL                GRAVITY FLOW CARTON RACK
                              SHEET RACK




                                 Choice of Floor
                                    or Mobile
      Stores sheet materials. Includes 3 pairs of 1 3 /16” dia. steel pipe uprights at
      12”, 26”, and 36” heights steel framed wooden deck with lacquer finish.
      1 1 /2”H x  1 /2” thick angle iron frame has rounded safety edges. Provisions
      included for floor anchoring. Blue enamel finish. Frame sockets permit 3 1 /2”
      upright adjustments (24”W has 7 sockets; 30”W has 9 sockets). Mobile Rack
      has 6” mold-on rubber wheels and 2,000 lb. capacity.
           FLOOR RACK               MOBILE RACK                                                  ROLLER
        Model    Price    L”x W”   Model     Price                                               TRACKS
       SG652208   $252.00   48 x 24  SG652214   $301.00
       SG652213   366.00   60 x 30  SG652215   434.00
                SAFETY U-RACK                                               W” x D” x H”  Gravity  Model  1-2 Price Each 3+
                                                                                     Levels
                                                                                      SINGLE DEPTH UNIT
                                                    Provides first-in-first-out rotation.   96 x 36 x 84  3  SG184054  $620.00  $602.00
                                                    Roller  tracks  have  U-shaped  96 x 36 x 84  4  SG184055  791.00  768.00
                                                    galvanized steel channel sides with   96 x 36 x 84  5  SG184056  962.00  933.00
                                                    plastic wheels that support 50 lbs./  96 x 48 x 84  3  SG184057  628.00  610.00
                                                    ft. Guide rails and  beams adjust   96 x 48 x 84  4  SG184058  799.00  776.00
                                                    to accommodate carton sizes. Each   96 x 48 x 84  5  SG184059  968.00  939.00
                                                    level includes 4 pairs of roller tracks,
                                                    5  guide  rails  and  1  cross  support.   DOUBLE DEPTH UNIT: Bolted front to back
                                                    5 /8” thick particle board top shelf  96 x 72 x 84  3  SG235391 $1456.00 $1414.00
                                                    supports 1000 lbs. of storage. Levels   96 x 72 x 84  4  SG235392  1867.00  1812.00
                                                    adjust on 1 1 /2” centers. Gray baked   96 x 72 x 84  5  SG235393  2271.00  2203.00
                                                    enamel finish. Easy assembly.  96 x 96 x 84  3  SG235397  1614.00  1566.00
                                                                            96 x 96 x 84  4  SG235398  2072.00  2010.00
                                                                            96 x 96 x 84  5  SG235399  2536.00  2460.00
             10,000 lb.                                            ADDITIONAL LEVELS Include supports,  ADDITIONAL
         capacity per pair                                         rolltracks and guide rails  Price Each  ROLLERTRACKS
                                                                                                      Price Pair
                                                                   W” x D   Model  1-2  3+  D”  Model  1-2  3+
      Ideal for storing bars, channels, angles,   STEEL PIN LOCKS   96 x 36  SG653275  $178.00 $173.00 36 SG184199 $27.00 $27.00
                                                                                  181.00 176.00 48 SG184200 31.00 31.00
                                                                          SG653276
                                                                   96 x 48
      pipes, etc. Stacks up to 4 high. Safety   RACKS TOGETHER     96 x 72  SG653277  419.00 408.00 72 SG235821 67.00 66.00
      pins lock stacked racks together to help                     96 x 96  SG653279  455.00 442.00 96 SG235823 74.00 73.00
      protect employees from injury. Heavy duty   Price Each
      welded steel construction. 25 1 /4” wide top   Model  1-6  7+
              1
      x 20” high x 4 /4” wide bottom channel.  SG952201 $71.00 $69.00  DOUBLE DEPTH
      122
