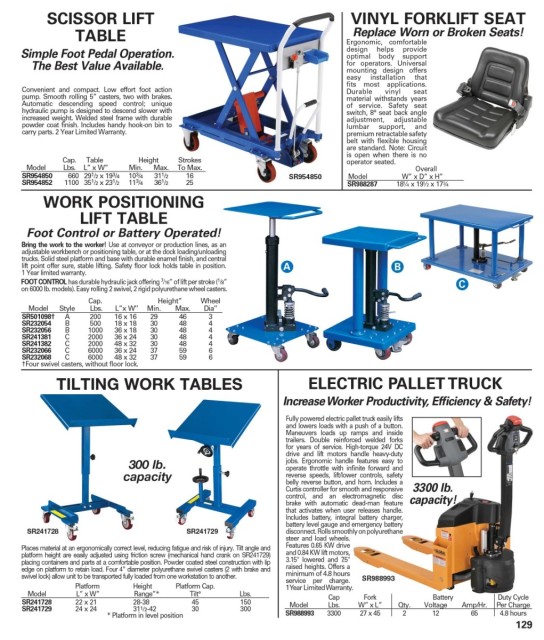

SCISSOR LIFT VINYL FORKLIFT SEAT
Replace Worn or Broken Seats!
TABLE Ergonomic, comfortable
Simple Foot Pedal Operation. design helps provide
optimal body support
The Best Value Available. for operators. Universal
mounting design offers
easy installation that
fits most applications.
Convenient and compact. Low effort foot action Durable vinyl seat
pump. Smooth rolling 5” casters, two with brakes. material withstands years
Automatic descending speed control; unique of service. Safety seat
hydraulic pump is designed to descend slower with switch, 8° seat back angle
increased weight. Welded steel frame with durable adjustment, adjustable
powder coat finish. Includes handy hook-on bin to lumbar support, and
carry parts. 2 Year Limited Warranty. premium retractable safety
belt with flexible housing
are standard. Note: Circuit
is open when there is no
Cap. Table Height Strokes operator seated.
Model Lbs. L” x W” Min. Max. To Max. Price Overall Price
3
3
1
1
SG954850 660 29 /2 x 19 /4 10 /4 31 /2 16 $540.00 SG954850 Model W” x D” x H” 1-2 3+
1
1
3
SG954852 1100 35 /2 x 23 /2 11 /4 36 /2 25 689.00 SG988287 18¼ x 19½ x 17¾ $173.00 $160.00
1
WORK POSITIONING
LIFT TABLE
Foot Control or Battery Operated!
Bring the work to the worker! Use at conveyor or production lines, as an
adjustable workbench or positioning table, or at the dock loading/unloading
trucks. Solid steel platform and base with durable enamel finish, and central
lift point offer sure, stable lifting. Safety floor lock holds table in position. A B
1 Year limited warranty.
1
FOOT CONTROL has durable hydraulic jack offering /16” of lift per stroke ( /8” C
7
on 6000 lb. models). Easy rolling 2 swivel, 2 rigid polyurethane wheel casters.
Cap. Height” Wheel
Model Style Lbs. L”x W’’ Min. Max. Dia’’ Price
SG501098† A 200 16 x 16 29 46 3 $413.00
SG232054 B 500 18 x 18 30 48 4 632.00
SG232056 B 1000 36 x 18 30 48 4 781.00
SG241381 C 2000 36 x 24 30 48 4 1115.00
SG241382 C 2000 48 x 32 30 48 4 1264.00
SG232066 C 6000 36 x 24 37 59 6 1264.00
SG232068 C 6000 48 x 32 37 59 6 1379.00
†Four swivel casters, without floor lock.
TILTING WORK TABLES ELECTRIC PALLET TRUCK
Increase Worker Productivity, Efficiency & Safety!
Fully powered electric pallet truck easily lifts
and lowers loads with a push of a button.
Maneuvers loads up ramps and inside
trailers. Double reinforced welded forks
for years of service. High-torque 24V DC
drive and lift motors handle heavy-duty
300 lb. jobs. Ergonomic handle features easy to
operate throttle with infinite forward and
capacity reverse speeds, lift/lower controls, safety
belly reverse button, and horn. Includes a
Curtis controller for smooth and responsive 3300 lb.
control, and an electromagnetic disc
brake with automatic dead-man feature capacity!
that activates when user releases handle.
Includes battery, integral battery charger,
battery level gauge and emergency battery
SG241728 SG241729 disconnect. Rolls smoothly on polyurethane
steer and load wheels.
Places material at an ergonomically correct level, reducing fatigue and risk of injury. Tilt angle and Features 0.65 KW drive
platform height are easily adjusted using friction screw (mechanical hand crank on SG241729) and 0.84 KW lift motors,
placing containers and parts at a comfortable position. Powder coated steel construction with lip 3.15" lowered and 7.5"
edge on platform to retain load. Four 4” diameter polyurethane swivel casters (2 with brake and raised heights. Offers a
swivel lock) allow unit to be transported fully loaded from one workstation to another. minimum of 4.8 hours SG988993
service per charge.
Platform Height Platform Cap. 1 Year Limited Warranty.
Model L” x W” Range”* Tilt° Lbs. Price Cap Fork Battery Duty Cycle
SG241728 22 x 21 28-38 45 150 $252.00 Model Lbs. W” x L” Qty. Voltage Amp/Hr. Per Charge Price
SG241729 24 x 24 31 1 /2-42 30 300 575.00
* Platform in level position SG988993 3300 27 x 45 2 12 65 4.8 hours $2529.00
