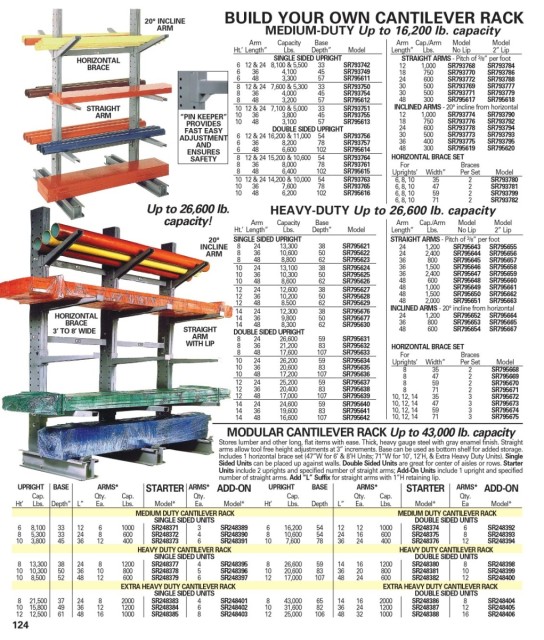

BUILD YOUR OWN CANTILEVER RACK
20° INCLINE
ARM MEDIUM-DUTY Up to 16,200 lb. capacity
Arm Capacity Base Price Arm Cap./Arm Model Model Price
Ht.’ Length” Lbs. Depth” Model Each Length” Lbs. No Lip 2” Lip Each
HORIZONTAL SINGLE SIDED UPRIGHT STRAIGHT ARMS - Pitch of 3 /8” per foot
BRACE 6 12 & 24 8,100 & 5,500 33 SG793742 $212.00 12 1,000 SG793768 SG793784 $26.00
6 36 4,100 45 SG793749 227.00 18 750 SG793770 SG793786 29.00
6 48 3,300 57 SG795611 247.00 24 600 SG793772 SG793788 33.00
8 12 & 24 7,600 & 5,300 33 SG793750 229.00 30 500 SG793769 SG793777 38.00
8 36 4,000 45 SG793754 241.00 30 500 SG793771 SG793779 40.00
8 48 3,200 57 SG795612 261.00 48 300 SG795617 SG795618 50.00
STRAIGHT 10 12 & 24 7,100 & 5,000 33 SG793751 250.00 INCLINED ARMS - 20° incline from horizontal
ARM “PIN KEEPER” 10 36 3,800 45 SG793755 259.00 12 1,000 SG793774 SG793790 29.00
PROVIDES 10 48 3,100 57 SG795613 286.00 18 750 SG793776 SG793792 31.00
600
SG793778 SG793794 34.00
24
FAST EASY DOUBLE SIDED UPRIGHT 30 500 SG793773 SG793793 40.00
ADJUSTMENT 6 12 & 24 16,200 & 11,000 54 SG793756 250.00 36 400 SG793775 SG793795 42.00
AND 6 36 8,200 78 SG793757 275.00 48 300 SG795619 SG795620 48.00
ENSURES 6 48 6,600 102 SG795614 313.00
SAFETY 8 12 & 24 15,200 & 10,600 54 SG793764 270.00 HORIZONTAL BRACE SET
8 36 8,000 78 SG793761 298.00 For Braces Price
8 48 6,400 102 SG795615 343.00 Uprights’ Width” Per Set Model Per Set
10 12 & 24 14,200 & 10,000 54 SG793763 297.00 6, 8, 10 35 2 SG793780 $68.00
10 36 7,600 78 SG793765 312.00 6, 8, 10 47 2 SG793781 76.00
10 48 6,200 102 SG795616 355.00 6, 8, 10 59 2 SG793799 89.00
6, 8, 10 71 2 SG793782 99.00
Up to 26,600 lb. HEAVY-DUTY Up to 26,600 lb. capacity
capacity! Arm Capacity Base Price Arm Cap./Arm Model Model Price
Ht.’ Length” Lbs. Depth” Model Each Length” Lbs. No Lip 2” Lip Each
20° SINGLE SIDED UPRIGHT STRAIGHT ARMS - Pitch of 3 /8” per foot
INCLINE 8 24 13,300 38 SG795621 $327.00 24 1,200 SG795643 SG795655 $36.00
ARM 8 36 10,600 50 SG795622 348.00 24 2,400 SG795644 SG795656 45.00
8 48 8,800 62 SG795623 356.00 36 800 SG795645 SG795657 46.00
10 24 13,100 38 SG795624 368.00 36 1,500 SG795646 SG795658 51.00
10 36 10,300 50 SG795625 391.00 36 2,400 SG795647 SG795659 59.00
10 48 8,600 62 SG795626 408.00 48 600 SG795648 SG795660 54.00
12 24 12,600 38 SG795627 412.00 48 1,000 SG795649 SG795661 50.00
12 36 10,200 50 SG795628 420.00 48 1,500 SG795650 SG795662 58.00
12 48 8.500 62 SG795629 450.00 48 2,000 SG795651 SG795663 64.00
14 24 12,300 38 SG795676 470.00 INCLINED ARMS - 20° incline from horizontal
HORIZONTAL 14 36 9,800 50 SG795677 497.00 24 1,200 SG795652 SG795664 $42.00
BRACE 14 48 8,300 62 SG795630 516.00 36 800 SG795653 SG795665 48.00
3’ TO 8’ WIDE STRAIGHT DOUBLE SIDED UPRIGHT 48 600 SG795654 SG795667 54.00
ARM 8 24 26,600 59 SG795631 $378.00
WITH LIP 8 36 21,200 83 SG795632 414.00 HORIZONTAL BRACE SET
8 48 17,600 107 SG795633 452.00 For Braces Price
10 24 26,200 59 SG795634 409.00 Uprights’ Width” Per Set Model Per Set
10 36 20,600 83 SG795635 442.00 8 35 2 SG795668 $67.00
10 48 17,200 107 SG795636 493.00 8 47 2 SG795669 77.00
12 24 25,200 59 SG795637 450.00 8 59 2 SG795670 89.00
12 36 20,400 83 SG795638 500.00 8 71 2 SG795671 100.00
12 48 17,000 107 SG795639 526.00 10, 12, 14 35 3 SG795672 99.00
14 24 24,600 59 SG795640 513.00 10, 12, 14 47 3 SG795673 110.00
14 36 19,600 83 SG795641 563.00 10, 12, 14 59 3 SG795674 126.00
14 48 16,600 107 SG795642 592.00 10, 12, 14 71 3 SG795675 138.00
MODULAR CANTILEVER RACK Up to 43,000 lb. capacity
Stores lumber and other long, flat items with ease. Thick, heavy gauge steel with gray enamel finish. Straight
arms allow tool free height adjustments at 3” increments. Base can be used as bottom shelf for added storage.
Includes 1 horizontal brace set (47”W for 6’ & 8’H Units; 71”W for 10’, 12’H, & Extra Heavy Duty Units). Single
Sided Units can be placed up against walls. Double Sided Units are great for center of aisles or rows. Starter
Units include 2 uprights and specified number of straight arms; Add-On Units include 1 upright and specified
number of straight arms. Add “L” Suffix for straight arms with 1”H retaining lip.
UPRIGHT BASE ARMS* STARTER ARMS* ADD-ON UPRIGHT BASE ARMS* STARTER ARMS* ADD-ON
Cap. Qty. Cap. Qty. Cap. Qty. Cap. Qty.
Ht’ Lbs. Depth” L” Ea. Lbs. Model* Price Ea. Model* Price Ht’ Lbs. Depth L” Ea. Lbs. Model* Price Ea Model* Price
MEDIUM DUTY CANTILEVER RACK MEDIUM DUTY CANTILEVER RACK
SINGLE SIDED UNITS DOUBLE SIDED UNITS
6 8,100 33 12 6 1000 SG248371 $627.00 3 SG248389 $347.00 6 16,200 54 12 12 1000 SG248374 $846.00 6 SG248392 $459.00
8 5,300 33 24 8 600 SG248372 739.00 4 SG248390 406.00 8 10,600 54 24 16 600 SG248375 1039.00 8 SG248393 557.00
10 3,800 45 36 12 400 SG248373 1008.00 6 SG248391 552.00 10 7,600 78 36 24 400 SG248376 1479.00 12 SG248394 801.00
HEAVY DUTY CANTILEVER RACK HEAVY DUTY CANTILEVER RACK
SINGLE SIDED UNITS DOUBLE SIDED UNITS
8 13,300 38 24 8 1200 SG248377 1018.00 4 SG248395 702.00 8 26,600 59 14 16 1200 SG248380 1247.00 8 SG248398 810.00
10 10,300 50 36 10 800 SG248378 1254.00 5 SG248396 843.00 10 20,600 83 36 20 800 SG248381 1577.00 10 SG248399 995.00
10 8,500 52 48 12 600 SG248379 1368.00 6 SG248397 931.00 12 17,000 107 48 24 600 SG248382 1990.00 12 SG248400 1154.00
EXTRA HEAVY DUTY CANTILEVER RACK EXTRA HEAVY DUTY CANTILEVER RACK
SINGLE SIDED UNITS DOUBLE SIDED UNITS
8 21,500 37 24 8 2000 SG248383 1268.00 4 SG248401 679.00 8 43,000 65 14 16 2000 SG248386 1577.00 8 SG248404 897.00
10 15,800 49 36 12 1200 SG248384 1622.00 6 SG248402 938.00 10 31,600 82 36 24 1200 SG248387 2256.00 12 SG248405 1282.00
12 12,500 61 48 16 1000 SG248385 2001.00 8 SG248403 1137.00 12 25,000 106 48 32 1000 SG248388 2847.00 16 SG248406 1482.00
