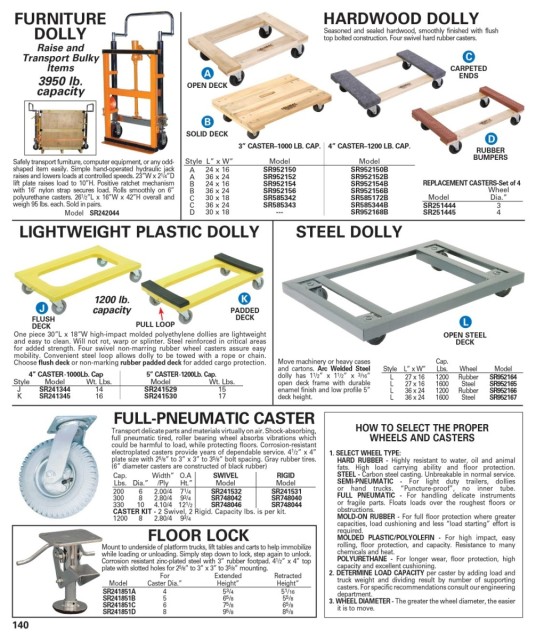

P. 140

FURNITURE                                                    HARDWOOD DOLLY
           DOLLY                                                    Seasoned and sealed hardwood, smoothly finished with flush
                                                                    top bolted construction. Four swivel hard rubber casters.
           Raise and
        Transport Bulky                                                                          C
             Items                           A                                                CARPETED
            3950 lb.                                                                           ENDS
           capacity                      OPEN DECK


                                             B
                                         SOLID DECK                                                  D
                                                    3” CASTER–1000 LB. CAP.  4” CASTER–1200 LB. CAP.
                                                            Price Each         Price Each          RUBBER
       Safely transport furniture, computer equipment, or any odd-  Style L” x W”  Model  1-3  4+  Model  1-3  4+  BUMPERS
       shaped item easily. Simple hand-operated hydraulic jack     A   24 x 16  SG952150 $37.00 $33.00 SG952150B $42.00 $37.00
       raises and lowers loads at controlled speeds. 23”W x 2 1 /4”D     A  36 x 24  SG952152  45.00 41.00 SG952152B  50.00 45.00
       lift plate raises load to 10”H. Positive ratchet mechanism     B  24 x 16  SG952154  40.00 35.00 SG952154B  44.00 40.00  REPLACEMENT CASTERS-Set of 4
       with 16’ nylon strap secures load. Rolls smoothly on 6”     B  36 x 24  SG952156  52.00 46.00 SG952156B  63.00 56.00  Wheel
       polyurethane casters. 26 1 /2”L x 16”W x 42”H overall and     C  30 x 18  SG585342  40.00 35.00 SG585172B  42.00 37.00    Model  Dia.”  Price
       weigh 95 lbs. each. Sold in pairs.    C  36 x 24  SG585343  45.00 41.00 SG585344B  50.00 45.00  SG251444  3  $22.00
       Model SG242044       Price/Pair $689.00    D  30 x 18  ---  ---  ---  SG952168B  49.00 42.00  SG251445  4  27.00
        LIGHTWEIGHT PLASTIC DOLLY                              STEEL DOLLY






                       1200 lb.                     K
            J         capacity                    PADDED
          FLUSH                                    DECK                                         L
          DECK                 PULL LOOP
       One piece 30”L x 18”W high-impact molded polyethylene dollies are lightweight        OPEN STEEL
       and easy to clean. Will not rot, warp or splinter. Steel reinforced in critical areas   DECK
       for added strength. Four swivel non-marring rubber wheel casters assure easy
       mobility. Convenient steel loop allows dolly to be towed with a rope or chain.   Move machinery or heavy
       Choose flush deck or non-marking rubber padded deck for added cargo protection.  cases and cartons.  Arc   Cap.  Price Each
                                                           Welded Steel dolly has   Style L” x W” Lbs. Wheel  Model  1-3  4+

       4” CASTER-1000Lb. Cap  Price Each  5” CASTER-1200Lb. Cap.   Price Each  1 1 /2” x 1 1 /2” x  3 /16” open     L  27 x 16 1200 Rubber SG952164 $143.00 $128.00
       Style  Model  Wt. Lbs.   1-3  4+  Model  Wt. Lbs.    1-3    4+  deck frame with durable     L  27 x 16 1600 Steel  SG952165 156.00 141.00
         J  SG241344  14  $57.00 $51.00 SG241529  15  $65.00 $58.00  enamel finish and low     L  36 x 24 1200 Rubber SG952166 164.00 147.00
         K  SG241345  16  64.00 57.00 SG241530  17  72.00 65.00  profile 5” deck height.     L  36 x 24 1600 Steel  SG952167 176.00 159.00
                           FULL-PNEUMATIC CASTER
                          Transport delicate parts and materials virtually on air. Shock-absorbing,   HOW TO SELECT THE PROPER
                          full pneumatic tired, roller bearing wheel absorbs vibrations which   WHEELS AND CASTERS
                          could be harmful to load, while protecting floors. Corrosion-resistant
                          electroplated casters provide years of dependable service. 4 /2” x 4”   1. SELECT WHEEL TYPE:
                                                              1
                          plate size with 2 5 /8” to 3” x 3” to 3 5 /8” bolt spacing. Gray rubber tires.     HARD RUBBER -  Highly resistant to water, oil and animal
                          (6” diameter casters are constructed of black rubber)  fats. High load carrying ability and floor protection.
                           Cap.     Width” O.A  SWIVEL     RIGID       STEEL - Carbon steel casting. Unbreakable in normal service.
                           Lbs. Dia.”  /Ply   Ht.”  Model  Price  Model  Price  SEMI-PNEUMATIC -  For light duty trailers, dollies
                           200  6  2.00/4  7 1 /4 SG241532 $46.00 SG241531 $41.00  or hand trucks. “Puncture-proof”, no inner tube.
                           300  8  2.80/4  9 3 /4 SG748042  44.00 SG748040  35.00  FULL PNEUMATIC -  For handling delicate instruments
                           330  10  4.10/4 12 1 /2 SG748046  54.00 SG748044  46.00  or fragile parts. Floats loads over the roughest floors or
                           CASTER KIT - 2 Swivel, 2 Rigid. Capacity lbs. is per kit.  obstructions.
                           1200  8  2.80/4  9 3 /4            SG502592A  139.95    MOLD-ON RUBBER - For full floor protection where greater
                                                                       capacities, load cushioning and less “load starting” effort is
                                                                       required.
                                 FLOOR LOCK                             MOLDED PLASTIC/POLYOLEFIN -  For high impact, easy
                        Mount to underside of platform trucks, lift tables and carts to help immobilize   rolling, floor protection, and capacity. Resistance to many
                        while loading or unloading. Simply step down to lock, step again to unlock.   chemicals and heat.
                        Corrosion resistant zinc-plated steel with 3” rubber footpad. 4 1 /2” x 4” top     POLYURETHANE -  For longer wear, floor protection, high
                        plate with slotted holes for 2 5 /8” to 3” x 3” to 3 5 /8” mounting.  capacity and excellent cushioning.
                                    For      Extended  Retracted      2. DETERMINE LOAD CAPACITY per caster by adding load and
                            Model  Caster Dia.”  Height”  Height”   Price  truck weight and dividing result by number of supporting
                        SG241851A   4         5 3 /4    5 1 /16  $18.00  casters. For specific recommendations consult our engineering
                                                                       department.
                        SG241851B   5         6 5 /8    5 5 /8  19.00  3. WHEEL DIAMETER - The greater the wheel diameter, the easier
                        SG241851C   6         7 5 /8    6 5 /8  22.00  it is to move.
                        SG241851D   8         9 5 /8    8 5 /8  23.00
      140
