BESTSELLER
Big Joe

Model # :WB987634

MPN #: WPT45-224AH

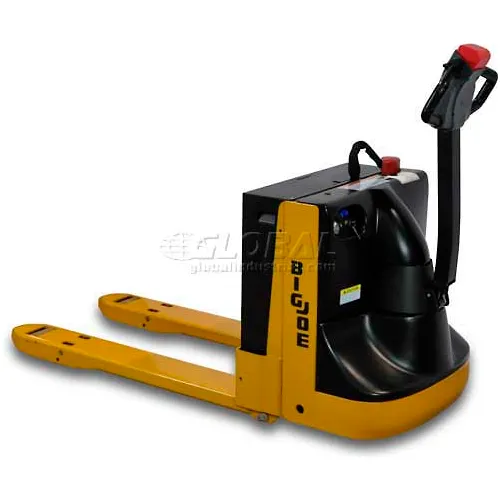

Big Joe® Electric Pallet Jack, 4500 lb. Capacity, 27"W x 45-1/2"L Forks

Product Description
Power propelled, power lift truck is the logical step-up from a manual truck, as it outperforms two to three operators with manual jacks. 24V AC high-torque drive and lift motors. Multi-function handle allows operation with either hand and features thumb throttle, lift/lower controls, safety reversing switch and horn. Automatic dead-man emergency brake cuts power when handle released. Includes 224AH AGM (absorbed gas mat) maintenance free batteries, battery charger, combination battery discharge/hour meter gauge and key switch. Rolls smoothly on polyurethane steer and load wheels. Features 27"W x 45-1/2"L forks, 3-¼" lowered height and 8.2" raised height. 4500 lb. capacity models have 0.9KW drive and 2.2KW lift motors. Designed to handle slopes up to 10% when Unloaded, 6% when Loaded.

PRICE
$6,325.00

1
1

Bulk Pricing

Quantity
Pricing
Buy 1 unit - 2 units
6325.00
Buy 3+ units
6009.00Save $316.00 (5%)
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Length70-7/8 in
Width28 in
Height48 in
Lowered Height3-1/4 in
Raised Height8-3/16 in
Weight Capacity4500 lbs
Weight1220 lbs
Fork Length45-1/2 in
Fork Width6-11/16 in
Distance Between Forks14-1/2 in
Distance Across Forks27 in
Travel Speed3.6 Unloaded; 3.5 Loaded mph
Turning Radius68 °

Product Details

Assembly RequiredNo
Duty Cycle6 Hours
Gradeability6% Loaded / 10% Unloaded
ChargerIntegral 120V
MaterialSteel
OperationElectric
Manufacturers Part NumberWPT45-224AH
BrandBig Joe
Battery TypeLead Acid
TypeLead Acid Powered Pallet Jack Trucks
ColorYellow
Lift TypeElectric
Duty Cycle per Charge6 Hours
Number of Batteries4
Handle StyleErgonomic Handle
Lower TypePowered

Warranty

Warranty2 Years yr
